Loom Weft Stop Parts J2 Weft Fork Hook
Loom Weft Stop Parts J2 Weft Fork Hook time:2022-07-08 09:17:11 click:5143 keywords:Weft fork hook, Weft stop accessories, Weft fork of loom
description:

Our company provides the J2 weft fork hook of the weft stop fitting of Yunnan loom all the year round. The J2 weft fork hook of 1511 and 1515 looms is divided into left hand and right hand. The steel ruler is inserted between the J2W weft fork hook of the weft stop fitting and the J30 weft fork spindle rod. On the one hand, move the weft fork hook core J00-1 of the loom up and down, and on the other hand, measure the end of the steel ruler close to the shuttle change side to make a little higher, so as to fix the height of the J2 weft fork hook.

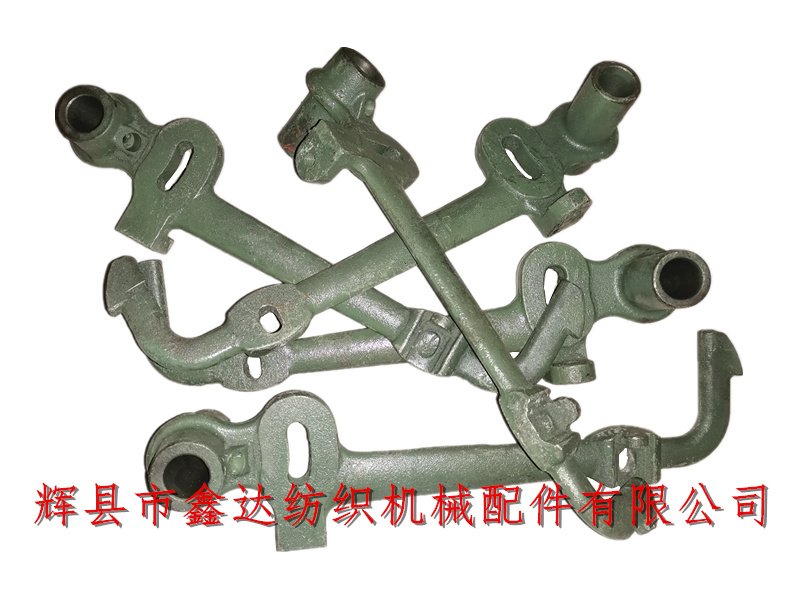

China loom accessories J2_Loom Weft Stop Accessories_J2 Weft Fork Hook

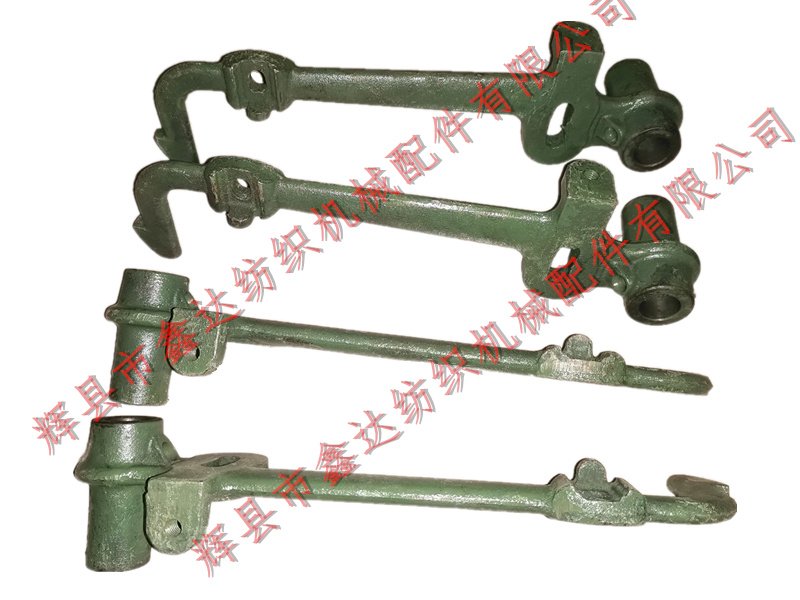

The figure above shows the right hand of J2 weft fork hook of Yunnan loom weft stop fitting, which is the same as that on the sketch book. The total length is 318mm, the shaft hole diameter is 20mm, the J00-1 mandrel is installed, the width of the length adjustment chute is 10mm, and the side is fixed and adjusted by M8 screws.

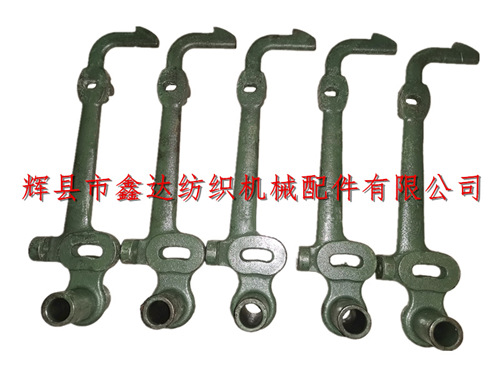

Shuttle changing induction part J2 of textile machine

Adjust the position of the hook head of the weft fork J2 and the weft fork J32, loosen the winding spring rod hook L12, loosen the tightening ring C7, move the weft fork J2 left and right to align with the weft fork hook, fix the left and right tightening rings C7, and the transverse movement shall not exceed 0.4mm.

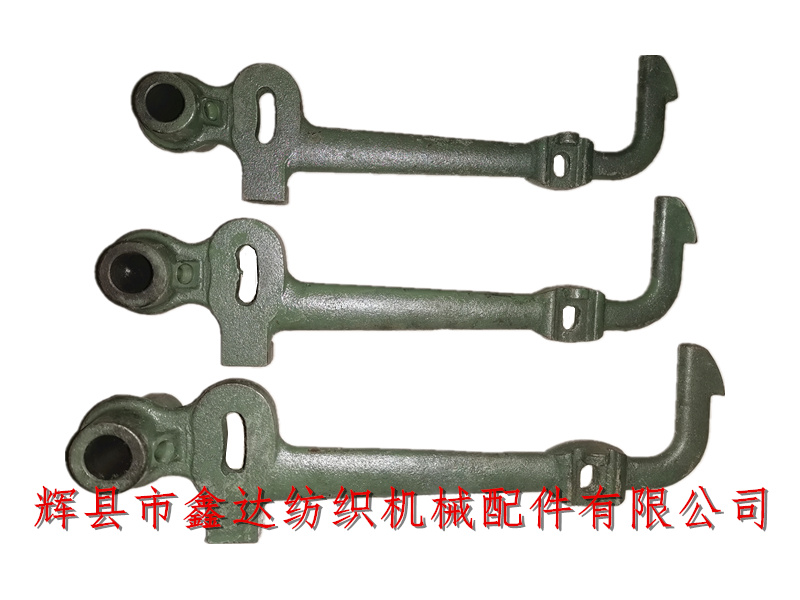

1515-J2 weft fork hook_GA615-135 shuttle loom parts

Textile weft fork hook, weft stop accessories, weft fork accessories of loom are the main components of shuttle change induction. The weight of a single hook rod is about 0.9 kg, and the material is pig iron. One is used for each loom.
