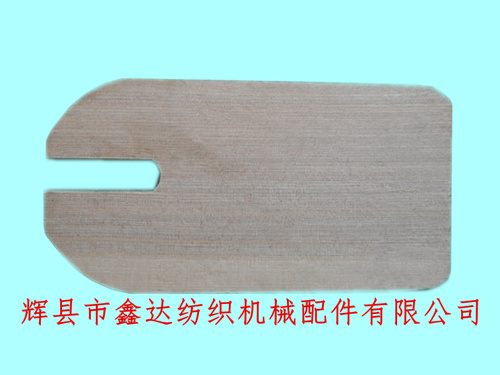

Huixian Xinda Textile Machinery Accessories Co., Ltd. has long been providing various kinds of loom foot board accessories of 1511, 1515, G611 and GA615 models. The materials are birch, elm, etc. the overall dimensions are: length 18 cm, width 9.5 cm, thickness 13.2 mm, slot width 14 mm. The main role of textile wood products - floor board (car foot board) is to reduce the vibration of weaving machine in the production and weaving process, with buffer Use, can also adjust the level of the car foot.

Leveling sequence of loom footings:

1. Put wood planer, leveling ruler, tools, etc. in proper place.

2. Use the level ruler and level ruler to find out the base surface of the vehicle foot with the middle height of the four feet.

3. Take this surface as the standard, check the other three foundation surfaces, and fill and level them with cement from the bottom of the ground slab.

The four foot plates (car feet) of the same loom need to use wood of the same material, with the same hardness and softness. After the four feet of the loom are corrected, check whether the height difference is less than 5mm. If it is higher than 5mm, rework is required.

After using for a period of time, the thickness of the textile machine floor accessories will become smaller. Please pay attention to timely inspection, because the four legs are irregular, and the fuselage inclines. After working for a long time, it is easy to cause the breakage of the loom bending shaft, and there is a slight safety hazard.

If you want to purchase the floor board, textile wood products, loom accessories, textile machine foot plate and other products, please contact Mr. Yang of our company for details!
