Huixian Xinda Textile Machinery Parts Co., Ltd. provides 1511, 1515, and GA615-D13 Easying-motion cam cast iron parts. Loom Cam,Motion Cam,Shuttle Loom Parts,1515 Cam,The D13 shuttle loom cam is paired with a smooth-motion rod primarily to control the warp yarn tension on the loom, facilitating the closing of the shed. The length of this cam is 138mm, manufactured via sand casting. On the 1511 loom, it is fixed to the D7, while on the 1515 loom, it is mounted on the 3210. For the GA615 loom, it is secured to the G1515-0212. All are curved shaft gears, but their inner holes and tooth counts differ.

The D13 cam is divided into left and right hands, made of gray pig iron HT15-32. They are installed on the switch side of the loom, near the P2 or 4302 loom wall panel. Each loom uses one cam.Loom Cam,Motion Cam,Shuttle Loom Parts,1515 Cam.

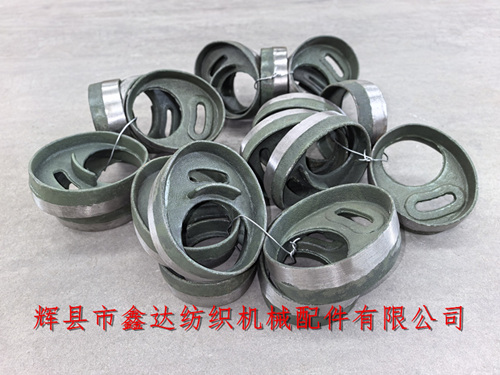

The polished position (shiny) on the outer ring of the cam is the contact point of the C13 or 3410 smooth motion rod, and the elliptical cam supports the movement of the smooth rod (up and down swing). Applicable models: 1511-D13, 1515-D13, GA615-D13. In shuttle looms, they are interchangeable parts and are not affected by the size of the loom door.

The large circular hole in the middle of the weaving machine cam D13 is a step that covers the crankshaft gear. The eccentric direction of the circular hole is the key to distinguishing the left and right hands of D13, and the arc-shaped groove below is the bolt penetration part fixed to the crankshaft gear.

If you need to purchase textile cam D13, 1511 loom cam, 1515 cam, GA615 loom cast iron parts and other products, please contact Mr. Yang from our company for consultation. We welcome new and old customers to visit and guide us.
