Huixian city Xinda Textile Machinery Accessories Co., Ltd. provides Ribbon Shuttle Parts Spindle Torsion Spring Kit,the spindle and torsion spring kit for loom shuttle parts. The spindle and torsion spring kit for the inner cavity of loom shuttle are suitable for six-shuttle ten-tooth loom equipment. The total length of right-angle spindle is 73mm, the diameter is 2.4mm (thickness), the length of the fixed spool (Weft tube) is 70mm, and the length of the fixed position of torsion spring is 15mm；; The torsion spring on the spindle is of different shapes. The diameter of the spring steel wire of the torsion spring is 1mm, the diameter of the coil of the spring body is 4.5mm, the length of the spring body is 13.5mm, and the length of the two sections with the tail cocked is 8.5mm and 18mm respectively.

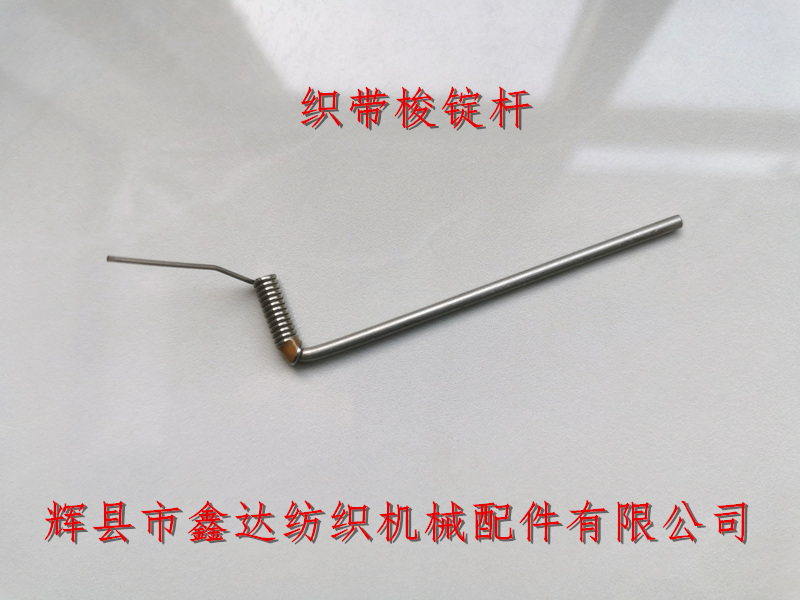

The spindle rod and the torsion spring are connected and fixed by glue, so that the torsion spring cannot rotate on the spindle rod, and the tail bending angle is about 5. The above picture is the front view of the spindle rod torsion spring kit. Shuttle parts of loom spindle torsion spring kit arc ribbon shuttle parts (spindle, torsion spring, shuttle parts, ribbon, ribbon shuttle, arc shuttle)

The above picture shows the back of the spindle torsion spring kit. The number of turns of the spring is 14, the surface of the spring is plated with nickel, and the spindle is made of galvanized A3 material. Their installation on the shuttle is as follows:

The weight of a single set of spindle torsion spring kit is about 5 grams, and the overall linear length is 94 mm. If you need to purchase mechanical parts of arc ribbon-hardware parts (spindle, torsion spring, pressure plate, baffle, etc.), please contact and discuss with Mr. Yang of our company, and welcome your visit.
