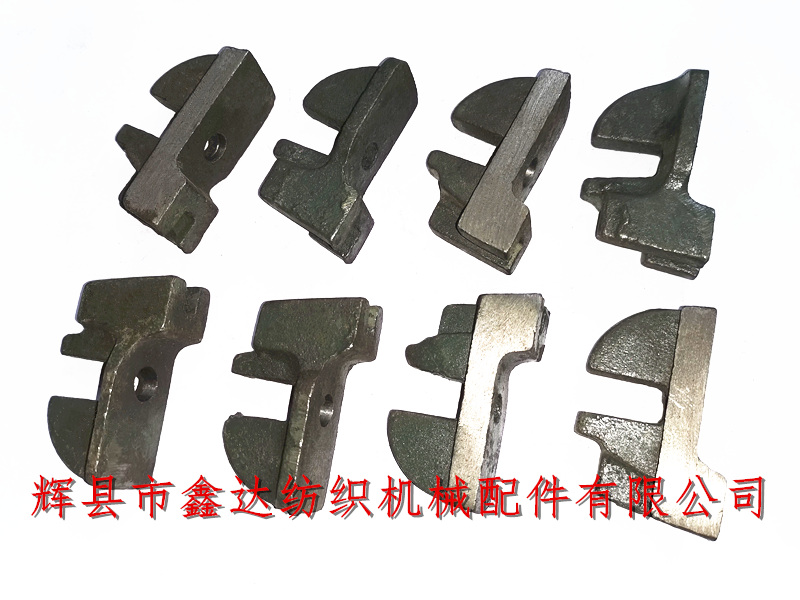

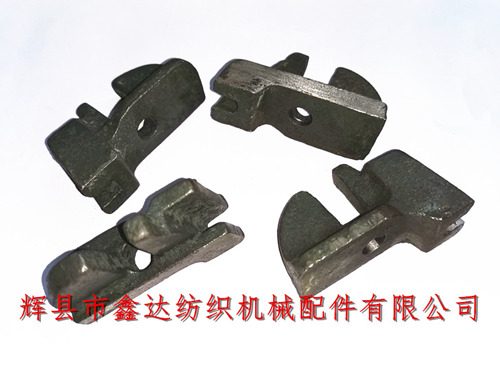

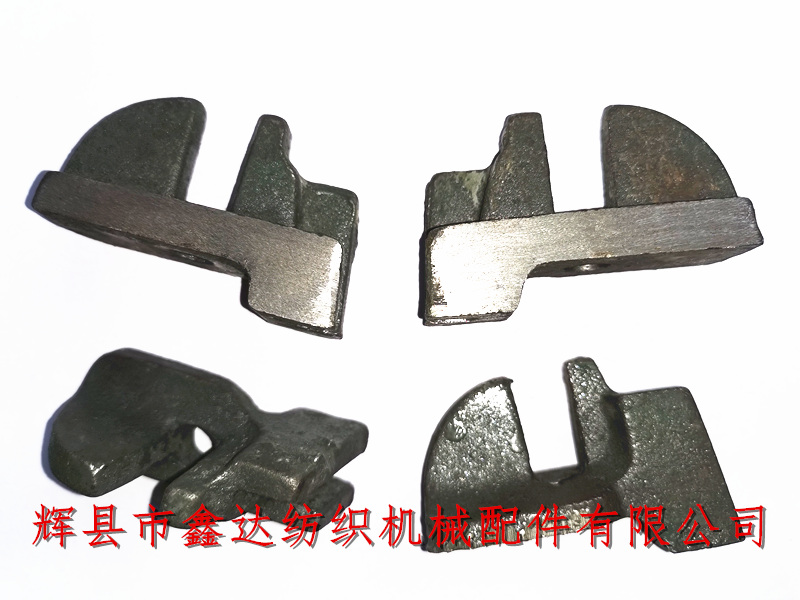

Xinda Textile accessories provides shuttle textile machinery accessories - L22 side strut slider. Loom L21 and L22 constitute left and right hand side support slider. Each loom uses one piece. The length of textile slider L21 and L22 is 62mm. They are connected with loom side support l19xl20, and the meshing clearance between them is less than 0.8mm. Textile machinery accessories L21 / 22 material is gray iron HT15-33, the color is dark green, its upward side processing is flat.

The hook screw L28 (side strut spring climbing screw) is installed in the middle round hole of the textile side strut slider L21 / 22. The width of the side clamping slot is 6.3 mm, the height of the slider is 4.1 cm, and the weight of a single accessory is about 0.125 kg.

Textile machinery accessories - L22 side strut slider belongs to the take-up accessories of loom. It is composed of L24 cloth guide roller support foot, stretcher bar, winding roller support bar and other accessories.

This product is suitable for 1511, 1515, GA615 and other old shuttle looms with various door widths. For the installation requirements of the side strut slider L21, it is necessary to check whether the surface of the L19 side strut support foot is flat and smooth before installation, and the clearance between the L19 side strut and the side strut slider shall be controlled within 0.8 mm. The front dead center of crank shaft, the included angle between them and shuttle walking plate (Q2 or 3310) is 3.5 ° (check with fixed gauge).

If you want to buy old textile accessories, textile slider, traditional textile machinery accessories - L22 side strut slider and other products, please contact our company, welcome to inquire about the order.
