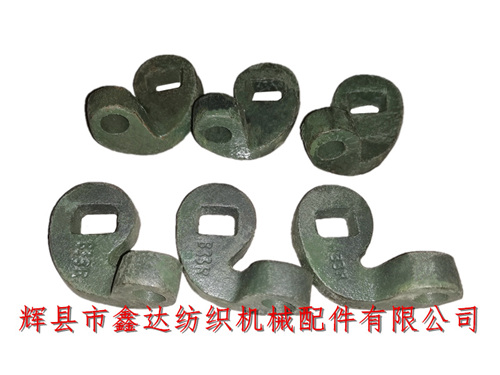

Our company provides automatic shuttle changing loom accessories throughout the year. The supporting foot on B33 inclined shaft, with an inner hole diameter of 14mm, is fixed on the chest beam of the loom. The supporting foot on B33 inclined shaft is divided into left hand and right hand.Automatic Loom B33 Tilt Shaft Upper Foot, Each loom uses one piece, with a length of 60mm, a width of 6cm and a thickness of 4cm. The length of the rectangle fixed above is 20mm and a width of 13mm, which is fixed with M10 * 50mm half round head square neck bolts.

The material of B33 is HT15-33 pig iron, which is the sanding part of small loom. It specializes in providing textile machine wall plate support feet, shuttle machine chest beam hanging feet, old shuttle loom iron castings and other products. Products with special specifications can be customized in batch.

The weight of the supporting foot on a single B33 inclined shaft is about 0.2kg. It is suitable for 1511, 1515 and GA615 automatic loom equipment. It is installed under the B34 warp adjustment handwheel used in traditional electric looms.

1511 automatic shuttle changing part, 1515 loom accessories, GA615 loom tilt shaft,If you need to purchase B33 inclined shaft foot support products for automatic shuttle changing loom accessories, Tilt shaft foot,Automatic Loom, Loom Parts,or understand the parameters of B33 inclined shaft foot support, please contact Mr. Yang of our company for details.
