Huixian Xinda Textile Machinery Parts Co., Ltd. provides 3D Loom Steel Wire Heald (Rectangular Hole),three-dimensional weaving machine wire and stainless steel wire (rectangular hole) products. The length of stainless steel nickel plated wire (single hole type) is less than 1.25 meters. The three-dimensional weaving machine wire belongs to textile hardware, and the product category belongs to textile materials. Its middle hole (hole) size is 3mm wide and 7mm long (made of a single round steel wire with a main diameter of 1.2mm), with a rectangular shape. We can also provide holes larger than this parameter.

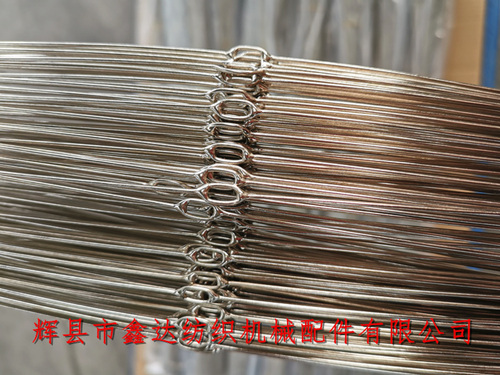

The above figure shows the hole shape used for the three-dimensional weaving machine wire (steel wire heald) used for carbon fiber weaving. Stainless steel wire has the characteristics of full welding points, high tensile strength, resistance to rust, and durability.

The ears at both ends of the stainless steel wire heald (as shown in the picture above) are also rectangular, and the inner width and length can be provided according to customer requirements. There are various specifications for textile hardware equipment products - steel wire harnesses, which require appropriate adjustments based on different densities, lifting sequences, and fabric thicknesses. There are many combinations of specifications derived from length, hole size, round steel wire thickness, and number of harness holes.

Textile equipment - The surface of stainless steel wire is treated with electroplating nickel, and the thickness of the coating can be adjusted appropriately to meet the weaving requirements of different customer groups. In general, round steel wire bundles of different specifications are also known as "single wire bundles". The packaging of three-dimensional weaving machine steel wire and stainless steel wire (rectangular hole) is transparent bag, 200 pieces/bag, with a minimum order quantity of 1000 pieces or more.

The three-dimensional fabric belongs to a relatively thick three-dimensional layer structure, requiring a tight warp and weft structure and certain requirements for the deformation of the steel wire mesh; If you need to purchase different specifications of steel wire harnesses, 3D Loom Steel Wire Heald (Rectangular Hole) weaving machine harnesses, stainless steel harnesses, textile hardware and other products, you can contact Mr. Yang from our company for consultation.
