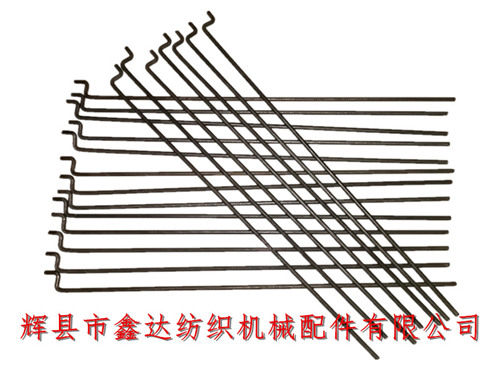

Huixian Xinda Textile Machinery Accessories Co., Ltd. provides the J22 cross spindle of 1511/1515 loom accessories. Cross Spindle,Loom Parts,1515 Parts,The total length of the textile accessories J22 is 40cm. The material is spring steel wire II. The diameter of the steel wire is 4.5mm. It is connected with the j13 cross spindle sleeve of the loom. The cross spindle J22 is divided into left hand and right hand, 50 pieces in each bundle, and 1 piece for each 1511/1515 loom.
The crank shaft is at the front dead center, the shuttle is at the switch side, the weft cam (E4) is forward with a large radius, and its clearance with the cross spindle hook (J28) is 0.2mm. It is required to move flexibly and have moderate spring force,The transverse tolerance is 0.4mm, and the re abrasion of the head end shall not exceed 0.4mm.
The textile accessory J22 (cross spindle) belongs to the induction shuttle change accessory of the loom, which assists the loom to realize the automatic shuttle change operation. Cross Spindle,Loom Parts,1515 Parts,The accessories installed on the J22 cross spindle from left to right are: J14 collar, j33 cross spindle spring, J11 probe foot, J00-3 bell crank arm and J13 cross spindle sleeve.
As shown in the figure above, please refer to the position of the plane section when distinguishing the left hand and the right hand. During installation, fix the position of the bell crank arm J23 so that the hook head of the cross ingot J22 falls into the ingot hook J28 to maintain a 17 ° inclination, and there is a 0.2mm gap between the lower part of the cross ingot hook and the ingot hook plane. The cross ingot is required to be flexible, and the bell crank arm shall not collide with the probe support J9.
J22 cross spindle is applicable to 1515, 1515, GA615 and other models of automatic shuttle changing looms. If you need to purchase cross spindle, shuttle loom accessories, 1515 accessories, 1511 loom accessories and other products, please contact our company for details!
