Huixian Xinda Textile Machinery Parts Co., Ltd. provides textile hardware gripper yarn clip three piece set 911819124, P7100 gripper machine accessories -911819124 gripper yarn clip three piece set is composed of gripper yarn clip screw (911 319 238 Special Screw), bushing (911 319 367 Bush) and gripper yarn clip nut (911 319 239 Special Nut), which belongs to textile hardware accessories of gripper loom.

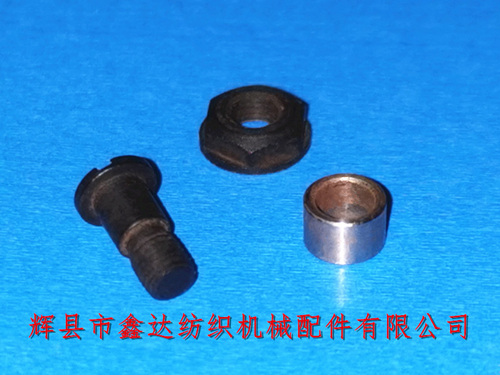

As shown in the figure above, the weft gripper screw (911 319 238) is a slotted round head screw with a total length of 7.3mm, an effective length of 6.3mm, a round head diameter of 4.2mm, a diameter of 2.7mm at the polished rod position, and a front thread diameter of 2.5mm.

The liner of the three piece yarn clamp set for the weft conveyor: the outer diameter is 4mm, the inner hole diameter is 2.7mm, and the height is 2.5mm; The bottom diameter of the hexagonal nut is 5.7mm, the thickness is 0.3mm, and the distance between the hexagonal faces is 5mm. The total thickness of the nut is 1.9mm.

The weight of a single weft gripper three piece set (911 819 124) is 0.7 grams, with a minimum order quantity of 50 pieces and a delivery time of approximately 5-8 days. If textile trading companies or foreign textile enterprises need to purchase shuttle weft gripper components, shuttle yarn clip hardware, P7100 weft gripper, PU shuttle machine yarn clip, textile hardware, three piece sets and other products, please contact Mr. Yang from "Xinda Textile Machinery Accessories" for consultation!
