Huixian Xinda Textile Machinery Parts Co., Ltd. provides mechanical parts for the 1515-3301/1511-F9 tappet shaft Loom Axis,weaving machine's central axis. The 1515 weaving machine's tappet shaft has an additional keyway than the 1511 type central axis, with the same shaft diameter of 42mm. The width of the keyway on both sides is 12mm, and the depth is 3.5mm. The length of the keyway on one side is 81mm (for fixing the shuttle disc), and the length of the keyway on the other side is 145mm (for fixing the central axis gear and shuttle disc).

The corresponding length dimensions of 1511-F9 (central axis) and each fabric  width are: 42 inches=1725mm, 44 inches=1782mm, 46 inches=1827mm, 50 inches=1929mm, 52 inches=1979mm, 54 inches=2085mm.

The corresponding lengths of the 1515-3301 tappet shaft and each fabric width are: 56 inches=2246mm, 63 inches=2420mm, 75 inches=2725mm. The material of the weaving machine tread shaft is 16 manganese or 45 steel. The 1515 type is connected to the 1511M-E1C sleeve, and the GA615 type is connected to the GA611-0100-2.

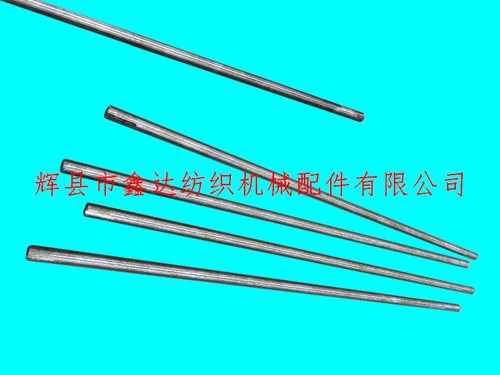

The above picture is a physical photograph of the 1511-54 inch F9 Tappet Shaft; The mechanical components of the 1515-3301 and 1511-F9 Tappet Shaft shuttle loom are commonly used accessories. Each weaving machine uses a central shaft, which is installed below the weaving machine. The middle of the shaft body is equipped with a tappet plate, so it is called the "tappet shaft".

The individual weight of the 1511-54 inch Tappet Shaft is 22.5 kilograms, and other length specifications can be calculated sequentially. If you need to purchase textile pedals, Loom Axis, GA615 weaving machine accessories, 1515 mechanical accessories and other products, please contact Mr. Yang from our company for consultation.
