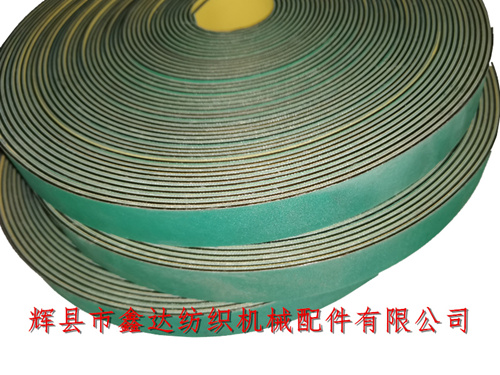

Huixian Xinda Textile Accessories has long provided 1515 loom Heald Belt 3116 Textile Base Belt for textile lifting harnesses. The base belt has a nylon substrate in the middle and a fiber cloth adhesive layer on both sides (the inner ring is yellow). The width of 3116 is 30mm and the thickness is 3mm. The 1515 lifting harnesses are 5mm wider than the 1511 type. The number of lifting harnesses used on normal plain weave looms is 4, the number used on twill looms is 8, and the length of each 1515 lifting harness belt is 36cm, The length of 1511 heald lifting belt is 22.5cm, and the length of each roll of sheet based heald lifting belt is 25m.

Type 1515 heald lifting belt 3116 (1515 Loom Heald Belt 3116 Textile Base Belt ) corresponds to GA615-1104, referred to as adhesive tape for short. It is used in connection with the 1515-3117 heald lifting pulley, with a lateral fracture of less than 1/3 (single layer fracture not included).

The weight of a single hanging heald belt is about 2.5 kilograms, and its fixation method is to use M10 support screws to press it tightly. GA615 and 1515 looms are both wide width looms, and door width looms over 75 inches (excluding 75 inches) are wide width looms.

The fixing hole can be processed by using leather instead of punching, and is affected by the height of the heald and the opening size of the heald frame. Therefore, the heald belt needs to be cut according to the actual length used. If you need to purchase products such as heald lifting belt, sheet base belt, heald lifting agent, 3116, 1515 Loom Heald Belt 3116 Textile Base Belt ,loom heald lifting agent, etc., please contact Mr. Yang of our company (Xinda Textile Accessories) for consultation!
