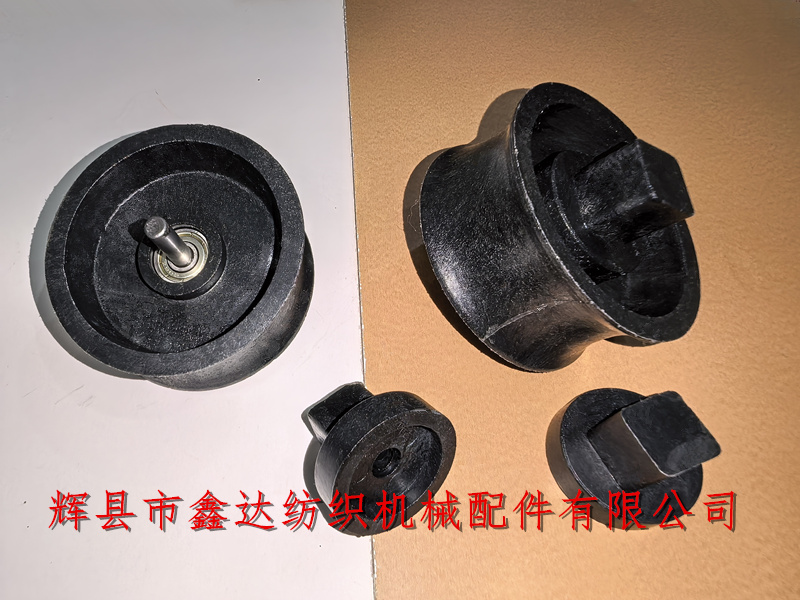

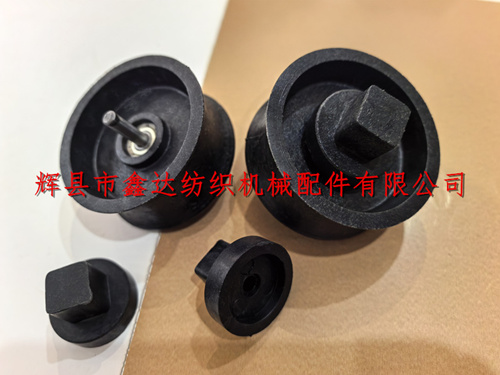

Huixian Xinda Textile Machinery Parts Co., Ltd. provides G203-0300-1 bearing-type Jockey Pulley(spindle belt disc) and winding machine accessories, Jockey Pulley,Winder Machine Accessories,Pirn Winder Machine Parts,including spindle belt discs,pirn winding machine parts, 6062 bearings, and G203 accessories. The black Jockey Pulley is a mechanical component designed to assist in powering the spindles of winding machines. It has an outer diameter of 70mm, a middle arc-shaped groove with a diameter of 61mm, a disc body thickness of 30mm, a middle shaft diameter of 6mm, and a length of 50mm.

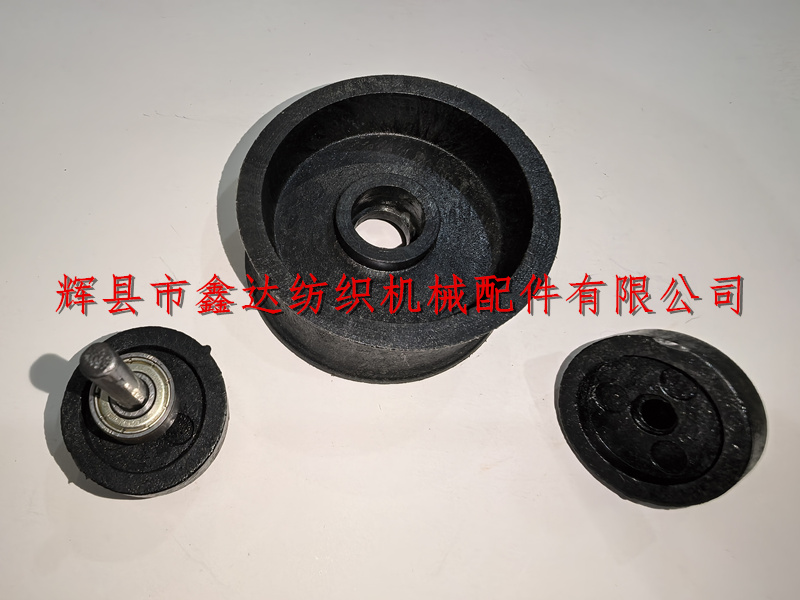

6062 bearings are fixed on the intermediate shaft body, with the parameters of an inner hole diameter of 6mm, an outer diameter of 17mm, and a thickness of 6mm. There is a straight groove in the middle of the shaft body and on both sides of the bearing.

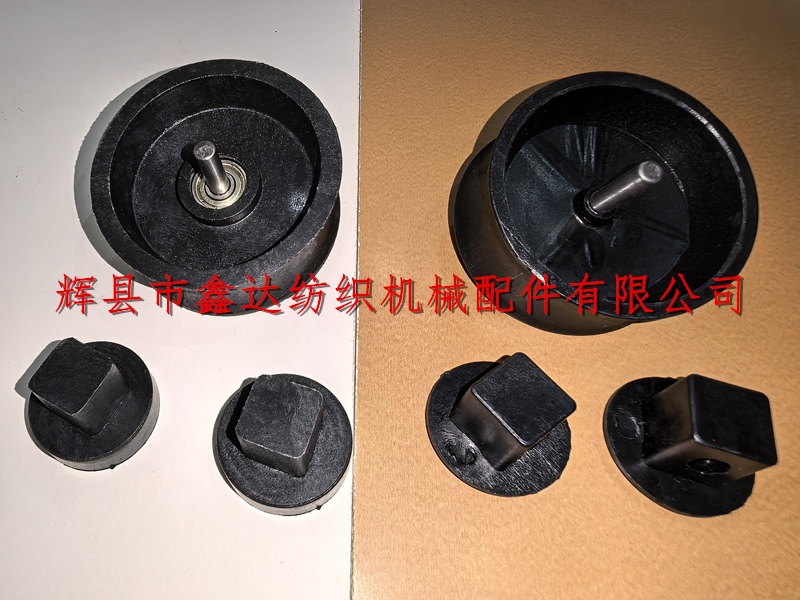

The diameter of the circular hole penetrating into the bearing side is 17mm, and the diameter of the circular hole on the other side is 13.7mm (bearing stopper edge). The dimensions of the two lugs in the above figure are: diameter of 34.7mm, cone thickness of 9mm; square head side length of 16.6mm, height of 16mm.

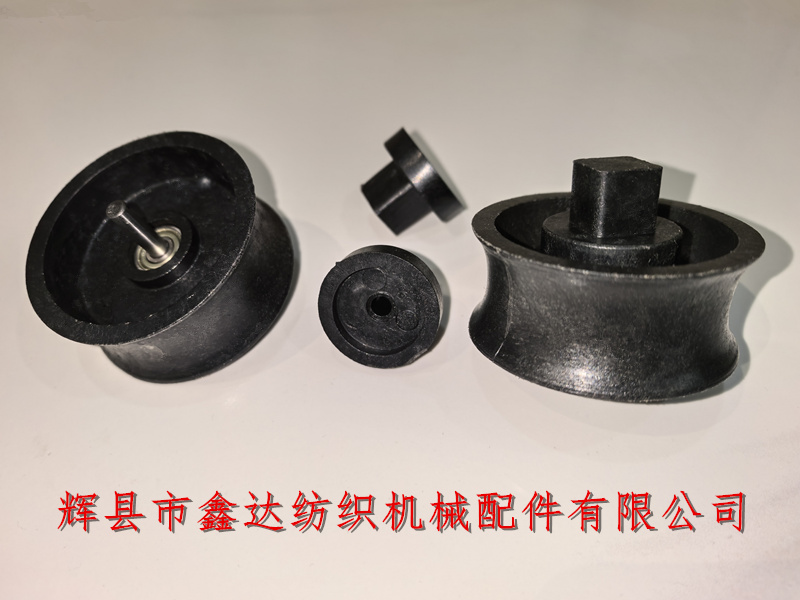

The total height of the lug is 25mm, which is connected and fixed with the arm seat of the weft winder. The spindle reel is made of plastic, and the bearing type has the characteristics of stable operation and less wear compared with the ordinary polished rod type.

If you need to purchase 0300-1 spindle reel, G203 pirn winder accessories, 6062 bearings and other G203 accessories, you can contact Mr. Yang of our company for purchase. Welcome to visit!
