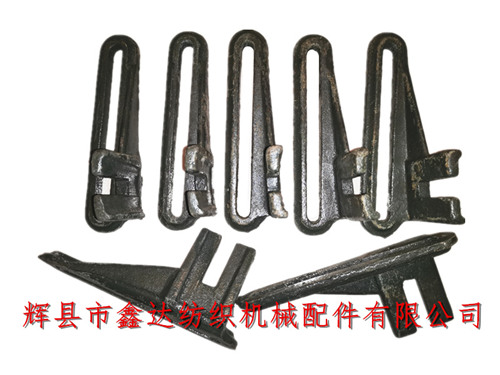

Our company provides the guide pin accessories of let off adjusting rod of 1511 44 loom, part No. C15, 1511 Loom Slctted Guide For Regulation Rod material HT15-33, and the inner length of regulating sliding groove is 14cm. The guide pins of let off adjusting rod of loom are divided into left and right hands, which are fixed on the reed feet at the shuttle changing side of small loom, and constitute an internal let off transmission device with adjusting rod, adjusting rod weight hammer and moving bar.

The weight of loom accessories C15 is about 500g, the width of chute is 11mm and the width of fixing groove is 12.5mm. It is fixed under the reed foot with carriage wire (square neck round head bolt).loom parts,slctted guide for regulation rod,1511 regulation rod.

The inner let off accessory C15 of 1511 44 loom is 17.1 cm in length, 52 mm in width, 74.7 mm in height, and 12-13.5 mm in thickness of fixed foot. It is a 1511 loom cast iron, 44 inch shuttle loom pig iron and inner let through flanging. After the product is turned over, the blank only needs to be deburred, and it does not need to be processed on the machine tool.

If you need to purchase XD let off adjusting rod guide feet, please contact manager Yang. We have been engaged in the sales of loom accessories and 1511 textile machine accessories for 20 years. We support the wholesale of loom C15 guide pins and the customization of C15 let off accessories in 1511 44 loom.
