Shuttle Loom Parts
I19 Switch Side Vertical Rod Bolt Textile Part
I19 Switch Side Vertical Rod Bolt Textile Part time:2022-07-08 09:25:38 click:5656 keywords:Side Vertical Rod,Textile Part,Loom Rod,Shuttle Loom Part
description:

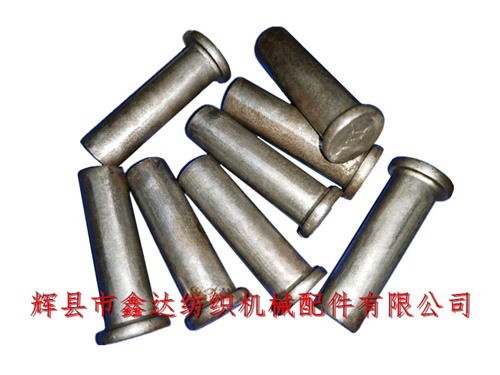

Xinda Textile machinery accessories provides I19 switch side vertical rod bolt textile machine starting brake accessories,The total length of bolt I19 for upright rod is 43mm, the length of bolt body is 4cm, the diameter is 12mm, and the diameter of tail round platform is 15.3mm.It is forged with A3 material and installed on the vertical rod on the side of I14 switch. It is used to connect I16 horn handle. It is a starting and braking accessory of textile machine.

1511 loom accessories i19 bolt for upright rod

Textile hardware pin shaft, loom bolt, loom core and other products are mainly checked for wear, loss and looseness when in use. The switch connecting rod I12 bumps the finger and protrudes, and the length of switch supporting foot I2 slot is not enough, which will cause the failure of no shuttle and no shutdown in the shuttle warehouse.

1515 bolt for I19 switch upright rod of loom

I19 switch side upright rod bolt is applicable to shuttle looms with door widths of 28 inches, 32 inches, 36 inches, 52 inches, 56 inches, 63 inches, 75 inches, 100 inches and 110 inches. One piece of textile machine equipment is used for each set. The product is a bolt for connecting loom components regardless of left hand and right hand.

GA615 textile accessories i19 bolt for switch vertical rod

The general accessories of 1515, 1511 and GA615 looms - I19 switch side upright rod bolt is packed in 50 pieces / bag (self sealing bag). If you need to purchase bolt accessories for loom, please contact Mr. Yang of our company for details! We sincerely welcome Chinese and foreign customers to visit and guide us!
