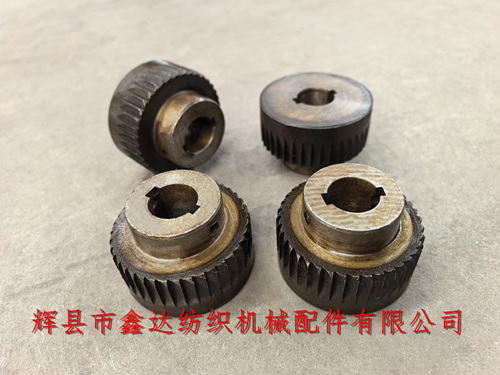

Huixian Xinda Textile Machinery Parts Co., Ltd. provides GA615 weaving machine accessories - vertical external warp feeding ratchet SJ-19 R/L. The warp feeding ratchet is installed on the outer lower part of the side wall panel of the weaving machine shuttle. The bottom outer diameter of the ratchet is 75mm, the outer diameter of the table is 48mm, the total height is 51mm, the height of the teeth is 21mm, and the height of the ratchet teeth is 31.5mm.

The material of SJ-19 ratchet is 45 # steel, with an inner diameter of 24mm for the central circular hole and two M6 key slots on the inner side, with a depth of 3mm, which means the distance between the bottom surfaces of the two key slots is 30mm.

The top view of the teeth is serrated, with the tabletop and bottom surface polished and the tooth area quenched; This external transmission ratchet is divided into left and right hands, namely SJ-19L (left hand) and SJ-19R (right hand), and the resolution method depends on the tilt direction of the gear.

GA615 loom accessory - SJ19 ratchet is installed on the SJ-11 ratchet vertical shaft (vertical shaft), and is externally connected to the SJ18 ratchet seat and SJ22 ratchet cover.

For more details on SJ-19 ratchet parameters, dimensions, materials, etc., please contact Mr. Yang from our company for consultation. We sincerely welcome everyone's visit. If you need to purchase the GA615 loom vertical delivery ratchet SJ-19 R/L product, you can call our company.
