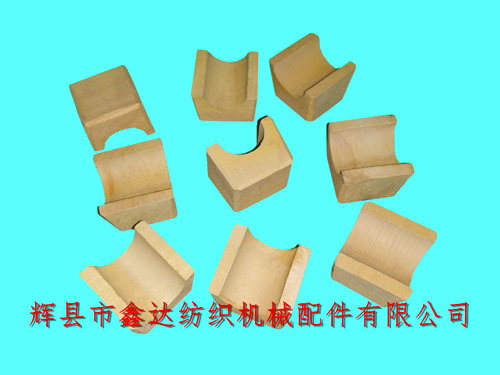

Huixian Xinda Textile Machinery Accessories Co., Ltd. provides textile wood products accessories. Q21 and Q20 are wood bearings for the heald lifting shaft of the loom Q21. Q20 is used for the position of the cloth winding roller, Q21 is used for the position of the heald lifting shaft above the loom, Q20 is larger than the semicircle in the middle of Q21. Their material is Quercus. The overall dimensions of the heald lifting bearing Q21 are: 30.5mm long at the top, 28mm long at the bottom, 29mm wide at the top, 26mm wide at the bottom, 22mm in total height, and 20mm in diameter.

Installation requirements for Q21 lifting heald shaft and wood bearing of textile wood products: it shall be 3mm higher than the M5 and M6 concave arc surface of the upper supporting foot, and the allowable difference is ± 1mm, so as to avoid the collision between the lifting heald shaft and the upper supporting foot. The number of loom wood bearings Q21 of textile accessories used on each loom is 2 Pcs, regardless of left hand or right hand. However, when placing and installing, attention should be paid to the tight fitting level between the bottom surface of the bearing and the bottom surface of the support foot.

Textile wood accessories also belong to textile equipment products. Wood products are also made of a variety of materials: laminated wood, compressed wood, logs (materials of different tree species), etc. Q21 wood bearings are packed in transparent self sealing bags. Each bag contains 33 heald bearings, and the weight of each bag is about 0.3KG.

Our company is a supplier of shuttle textile wood products. If textile manufacturers, weaving enterprises and weaving companies need to purchase 1511 wood products, 1515 loom bearings, GA615 heald bearings, 1515k textile accessories and other products, please contact Mr. Yang of our company for details!
