Huixian Xinda Textile Accessories Co., Ltd. provides various kinds of heald equipment.Steel Wire Heald With Grooved Mail-eyes, The special specification steel wire heald of textile machine is the slip ring brown wire. The textile heald is an important part used for warp layering and forming the weaving shed. According to the thickness specification and material characteristics of the warp yarn of the fabric, it needs to use different specifications and shapes of textile heald to match it. According to the brown eye of the conventional heald, it can be divided into fish eye, rectangular, round hole and other models, The diameter of single steel wire with sliding wire loop heald is generally 0.3mm-0.9mm.

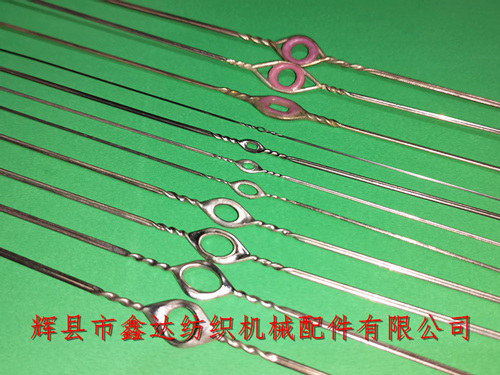

The heald wire commonly inlaid with pink ceramic ring generally uses a single steel wire with a diameter of 0.6mm-0.8mm. This is because the thickness of the ceramic ring is large, and it needs to be clamped with thick steel wire. The above picture shows the shooting of heald eyes of different types (heald, steel wire heald, sliding wire loop, brown wire, weaving wire heald, Grooved Mail-eyes wire heald,textile machine heald). Except that the fourth heald eye in the positive number is the ordinary B2 model, the others belong to the heald eye with sliding wire loop (Huasi).

In the figure above, the heald eyes of the tin welding wire heald are provided with sliding wire rings, which are also called flanging wire healds,Weaving Steel Wire Heald With Grooved Mail-eyes. The specific commonly used models are 1010R, 1015R, 1020R, 355R, 380R, 1080R, 390R and 450R; The internal cavity size of Huasi (sliding wire ring): 2.6mm * 0.9mm, 3.2 * 1.3mm, 4.0 * 1.5mm, 5.2mm * 2.3mm, 5.6mm * 2.7mm, etc. the applicable steel wire diameter range is 0.3mm to 0.9mm.

After pickling, the surface of tin welded steel wire heald is bright, and the number of packages is reduced according to the thickness of the steel wire. The common specification is 500 pieces/package, and the common cotton fabric uses more 355R.Textile Steel Wire Heald With Grooved Mail-eyes, The minimum order of this flanging steel wire heald of the same model and specification is 30000 pieces. If domestic and foreign weaving enterprises and weaving factories need to purchase heald, steel wire heald, sliding wire ring, brown wire, textile machine heald and other products, please send us samples or provide detailed size drawings. Mr. Yang, our Xinda Textile accessories, sincerely welcomes you.
