Our company provides various specifications of Toyota Loom Shuttle, automatic change of nylon shuttle, Toyota textile change shuttle is composed of four slot shuttle clip, ds202 yarn pass, counter pin screw, non detachable shuttle tip and injection shuttle body, with a total length of 405mm, shuttle bottom width of 47mm, shuttle height of 3.3cm, inner cavity width of 34mm, and filling wire slot width of 9.5mm. It is used with 205 or 200 textile fiber tubes, single handle weight The quantity is about 0.47kg. The shuttles and automatic shuttle changing of Toyota Loom are mainly export-oriented, with an order quantity of more than 3000.

There are four slots on the front of the shuttle clamp of Toyota automatic shuttle changing. The size of the opening of the two iron clamps beside is 2cm. The spring plate of the head is installed in the chute to support the bottom of the weft bobbin and ensure that the bobbin is placed horizontally in the shuttle cavity.

The arrangement of the bobbins on the disk of Toyota Loom is shown in the figure above. When there is no filling in the shuttle cavity, the bobbins at the bottom squeeze the bobbins downward and put them into the iron chuck of nylon shuttle.

The empty bobbin of g263z type change shuttle falls from the bottom of the shuttle (as shown in the figure above). At this time, the automatic change of the bobbin is completed. During the whole process, the Toyota Loom does not need to stop.

There are two holes (one is oblate and the other is rectangular) on the side of the shuttle. The oblate hole is a weft detecting slot, which is used to detect the empty weft in the shuttle cavity during weaving. The left hole is a balanced weft pressing hole.

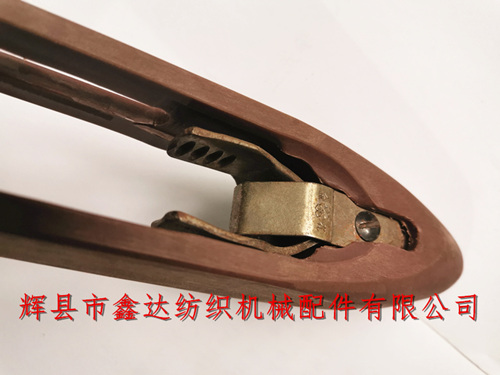

The top view of the front of the automatic fiber changing nylon shuttle is as shown above. There are three screws across the shuttle, all of which are GB slotted (different lengths). Two screws for the shuttle clamp are equipped with damping nuts (self-locking nuts).

The installation drawing of the yarn pass is as above. After the weft slot is introduced, the shuttle loading can be completed by changing its direction.

Packaging: carton, 50 pieces / box; color: dark red; manufacturing process: injection molding. The new Toyota Loom (modified with dobby) is shown as follows:

If you need to buy nylon shuttle, Toyota Loom, automatic shuttle change, please contact Xinda Textile accessories consultation!
