Xinda Textile machinery accessories provides GA615 loom accessories - textile machine accessories large full broken weft stop supporting foot (shuttle changing side) 7201. Weft Break Stop,Supporting Foot,Shuttle Loom Parts, Textile machine accessories include various auxiliary devices of the loom, such as broken weft stop mechanism, multi arm device, multi shuttle device, etc. the material of broken weft stop accessories - 7201 supporting foot is pig iron HT15-33, which is designed according to the left and right hands of shuttle loom and fixed on the chest beam of loom. Its overall dimension is: height 16 cm, 17.6cm long.

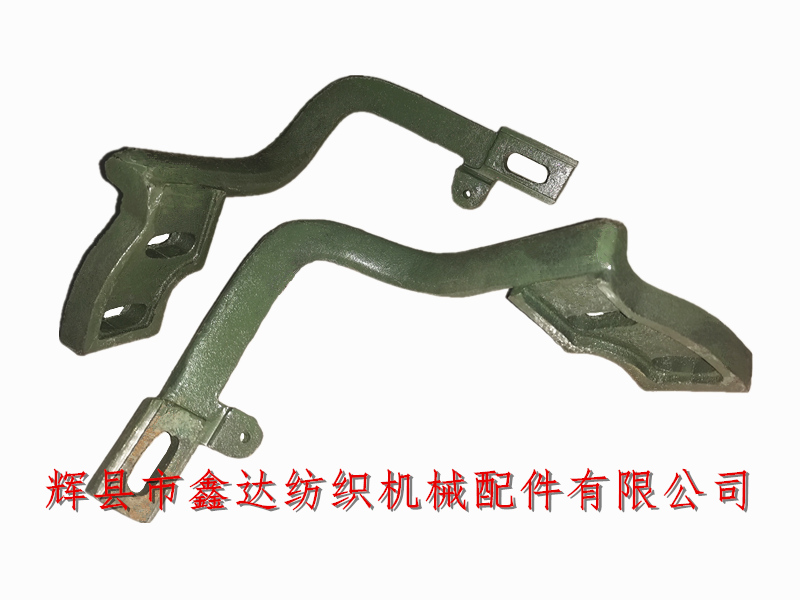

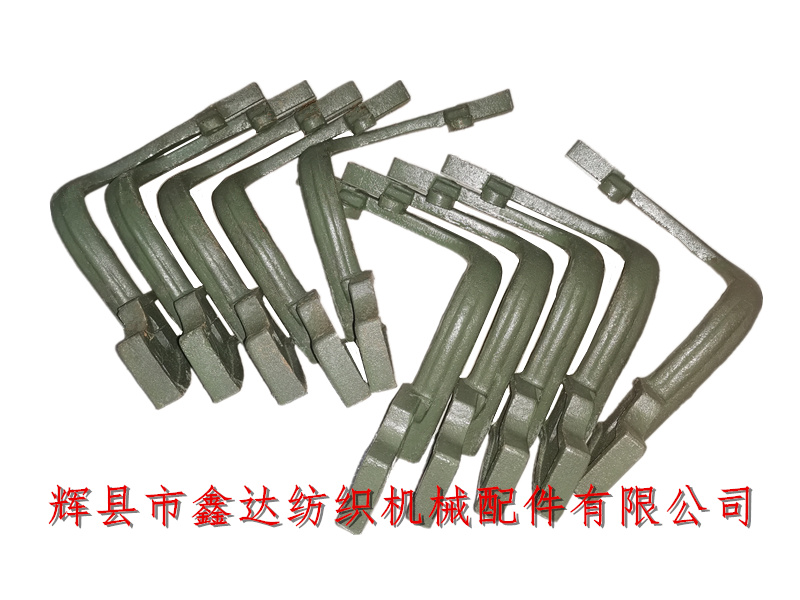

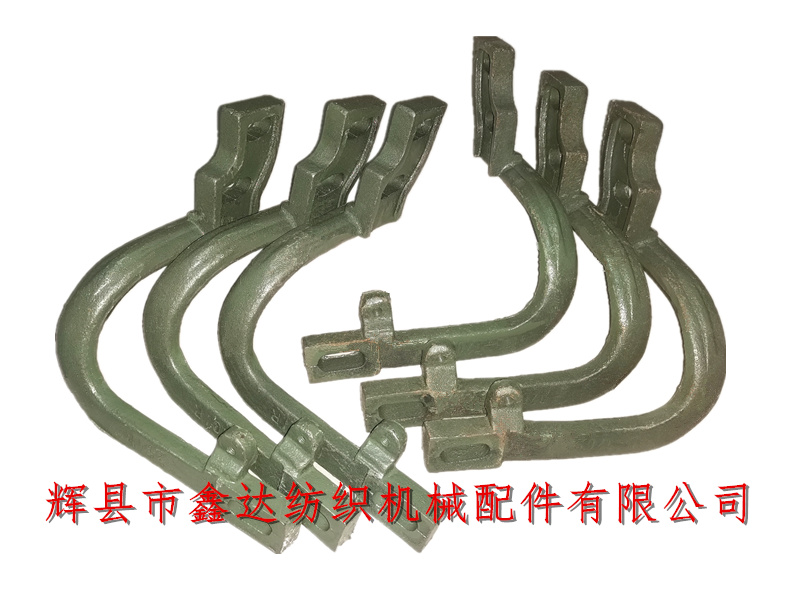

As shown in the figure above, the left hand and right hand of the broken weft stop supporting feet 7201 are installed on the left side of the loom, belonging to the right machine R; on the contrary, the right side of the figure is installed on the right side of the loom, belonging to the left machine L, 5 for each bundle, and the weight of a single broken weft stop supporting foot 7201 is 1.1kg.
The high and low eyes at the bottom of the broken weft stop supporting foot are fixed on the chest beam (1511-p3, ga615-0101 or 1515-4306) of the loom by two carriage screws. The horizontal position is used to hang the three sleeve of the broken weft stop. The inner width of the chute is 11.5mm, the inner length is 28.5mm, the lower raised height is 1.5mm, and the side screw hole is used to control the reset position of 7210 (middle sleeve rocker arm).
The complete collection of textile machine accessories includes 7209 broken weft stop striker, 7212 nylon bushing of machine head shaft rocker arm, 7213 swing frame, 7216 needle pressing rod, 7218 probe (0.8mm, 1.0mm, 1.2mm, etc.), 7219 limit piece, 7220 torsion spring of middle casing swing arm, 7221 pin shaft of middle casing rocker arm, etc.
There are many mechanical weft breaking and stopping devices in China, and textile machine accessories are widely used.Weft Break Stop,Supporting Foot,Shuttle Loom Parts, If you need to purchase weft breaking and stopping accessories, weft breaking and stopping supporting feet and other products, please contact Mr. Yang of Xinda Textile machinery accessories company!
