Our company offers 13.5-inch wooden and nylon shuttles (34.3*4.5*3.5cm), as well as loom shuttles and weaving equipment. The compressed wooden and nylon shuttles are the same model and specification of elastic warp shuttles, designed to fit a weft yarn tube with an adapter length of 18 cm. The shuttle has an outer width of 45 mm at the bottom and a height of 35 mm. On the opposite side of the ceramic eye hole, there is an arc-shaped slot for elastic warp, allowing the weft yarn to pass through the ceramic eye after being pulled tight and broken by the rebound of the yarn.

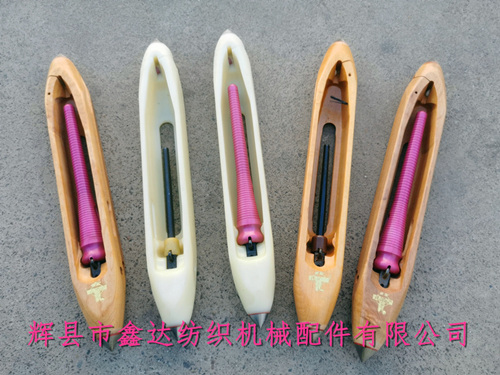

The above picture is a physical photo of nylon shuttle and wooden shuttle. Compared to nylon shuttle, wooden shuttle has better wear resistance and no static electricity. However, wooden shuttle is afraid of rolling shuttle (splitting after squeezing) and has lower production capacity. Textile equipment - Nylon shuttles are cast or injected using molds, with a wide range of material sources, short production cycles, and easy batch production to meet market demand.Textile Equipment Shuttle Loom Shuttle,Wood Shuttle For Looms

After increasing the length of the shuttle cavity, nylon shuttles can use weft yarn tubes with a length of 190mm. The purple winding tube in the above picture has a length of 180mm. The front part of the shuttle cavity is designed with a slope and the inner cavity width gradually shrinks to ensure that the yarn loop is normal and uniform. These two types of weaving machine shuttles are suitable for model range: 1511 G611、 1515 and GA615 weaving machines.

The bottom of the shuttle core of the wooden shuttle has counter bolts and steel pins. The counter bolts are used to increase the strength of the shuttle body, while the steel pins are used to fix the shuttle bottom spring (referred to as the shuttle spring); The wooden shuttle and nylon shuttle of this model specification are divided into left-hand shuttle and right-hand shuttle, and the same hand shuttle is used on the same automatic shuttle changing loom.

Nylon shuttle packaging: 50 pieces/box, wooden shuttle packaging: 55 pieces/box, they are both the same hand, if you need to pack them together, special instructions need to be made; If weaving factories and shuttle production enterprises in various cities need to purchase 13.5-inch wooden shuttles, 34.3*4.5*3.5cm nylon shuttles, automatic shuttle changing weaving machine shuttles, shuttle weaving textile equipment and other products, please contact Mr. Yang from our company for negotiation.
