Textile M45 Hanging Heald Hook Parts
Textile M45 Hanging Heald Hook Parts time:2022-07-07 11:23:19 click:1644 keywords:M45,hanging heald,textile hook
description:

Our company provides all kinds of textile M45 hanging heald hook accessories all the year round. The 1515k loom uses sz6312-s014 textile hook, also known as hook (bending handle), with a length of 146mm. A3 material is punched and formed. The inner length of M45 is 122mm, with a thickness of 2.7mm. The wooden screw hole connecting hanging heald Q16 or 3105 is 5mm, the length of loom hanging heald is 104cm, and the length of loom hanging heald is 121.9cm.

M45 loom accessories

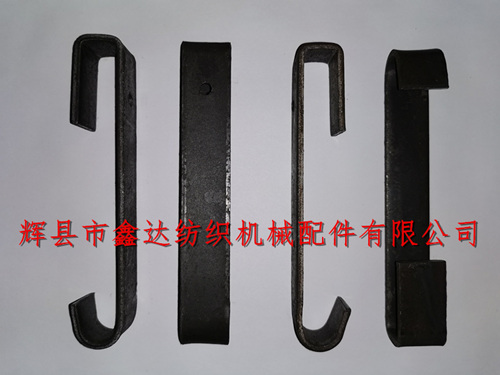

The picture above shows the finished product of M45 (the surface is not galvanized due to environmental protection),M45,hanging heald,textile hook.

Textile hanging heald hook M45

Textile hardware accessories, including shuttle loom hook accessories, textile equipment hardware parts, starting volume: 50 pieces, single weight of textile M45 hanging heald hook: 0.05kg.

Textile accessories M45 hook

The width of M45 is 19.6cm. The short hook is used to hook the lower beam of heald frame (seamless flat tube), and the long hook is fixed on the hanging heald plate, which is used for the up and down movement of the single heald frame of loom when it rotates according to the peach plate.

M45 heald frame lifting hook

M45 hanging heald hook, hanging heald plate accessories, textile hook manufacturers, brand old-fashioned 1511, 1515 and other models of small loom accessories, textile machinery hardware parts procurement, customization please contact our company for consultation!
