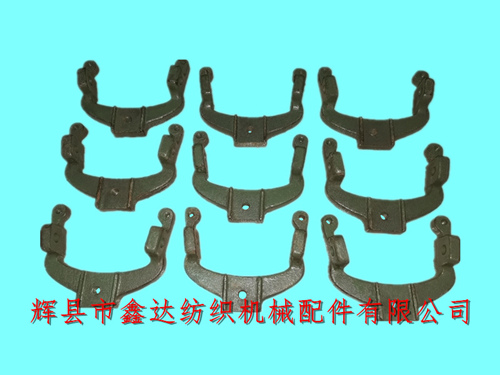

Huixian Xinda Textile Machinery Accessories Co., Ltd. provides the supporting feet O5 in the warp stop frame of 1511/1515/GA615 looms all the year round. The o-part accessories are the warp break self-stop parts of shuttle looms, and the warp stop frame is a part of the warp break self-stop. The supporting feet of the warp stop frame of the loom include O101 and O102 at both ends and O5 supporting feet in the middle. The shape of the O5 supporting feet is U-shaped, with a width of 118mm and a height of 92mm. The upper two screw holes are M6, the middle and lower screw holes are M8, the diameter of the round holes on both sides is 9mm, and the material is pig iron HT15-33.
The loom warp stop bracket bracket (middle) O5 does not distinguish between the left mobile phone and the right mobile phone. The quantity used by each weaving machine is: 1 for 1511-44 type, 2 for 1515 type 56 inch and 75 inch (added according to the increase of door width).
The warp break self-stop device of shuttle looms (1511/1515/GA615) generally adopts a passive mechanical design, which triggers the stop of the weaving machine by squeezing the falling warp break piece. At the same time, it can quickly find the position of warp break from under the machine, which is relatively simple and stable.
The above figure is the top view of the supporting foot O5 in the warp stop frame of the loom. The supporting foot O5 accessories in the warp stop frame of the loom are widely used in shuttle looms of models 1511, 1515, GA615, etc. the chute in the middle of O5 is fixed on the hanging foot in the middle of the O45 swing rod shaft. The usage of the supporting foot O45 of the loom is also related to the machine door width, which is the same as that of O5; Round holes on both sides are used to fix O34 or 3601 notched bars.
The overall thickness of the supporting leg O5 in the warp stop frame of 1511/1515/GA615 looms is 30mm, and its package is 10 in each string, with a single weight of about 0.4KG. If you need to buy textile warp stop frame, warp stop frame Feet, loom parts, textile accessories and other products, please contact Mr. Yang of our company for details!
