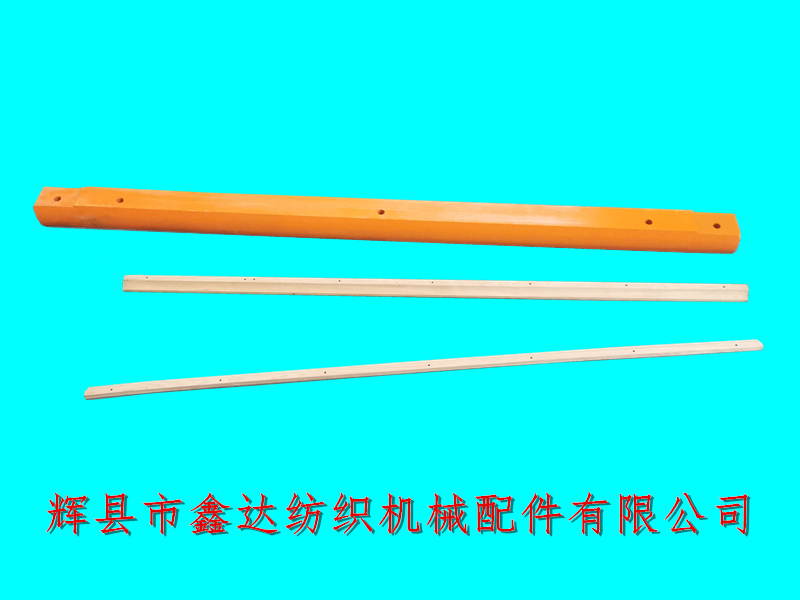

Huixian Xinda Textile Machinery Parts Co., Ltd. provides 1511 reed cap Q9 and weaving machine front and rear clamps Q10 and Q18, suitable for a door width of 44 inches. The total length of reed cap Q9 is 1295mm, with one side fixed on the reed seat foot K1 of the weaving machine and the other side fixed above the reed seat foot K2. The door width of a 44 inch weaving machine converted to a metric weaving machine is 105cm. Two wooden strips are installed below the weaving machine reed cap to clamp the steel reed of the weaving machine.

The upper part of the Q9 reed cap of the 1511 loom is a curved inclined surface, which is convenient for hand support during startup operation. The front clamp under the reed cap is relatively thick, part number Q10 (total length is 1092mm), and the rear clamp is thinner, part number Q18 (total length is 1092mm). They have seven fixing holes for wooden screws on top, and one side has a curved edge.

The packaging of the weaving machine reed cap Q9 is woven bags, with 10 pieces per bag. The reed caps are divided into left and right hands, and are identified based on the direction of the weaving machine steel reed box, with 5 pieces for the left hand and 5 pieces for the right hand.

The concave surfaces at both ends of the reed cap are generally compressed using K6 reed cap pads, and the three circular holes in the middle are used to install anti flying shuttle rods or bases. If any weaving factory or cotton fabric manufacturer needs to purchase 1511-44 weaving machine reed cap products, please discuss detailed matters with Mr. Yang from our company.
