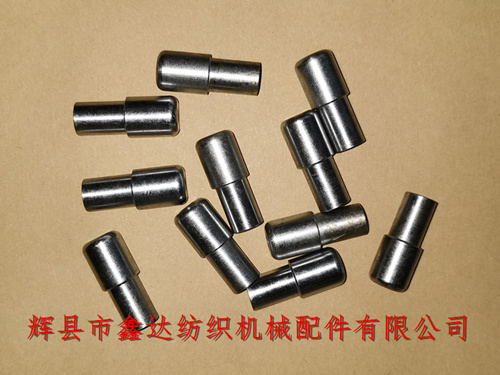

Huixian Xinda Textile Machinery Parts Co., Ltd. provides Sulzer Loom Guide Tube Head 911341136, guide spring and plug assembly 911341136. The English name of the yarn guide plug is Pressure Piece, with a total length of 25.8mm, the upper outer diameter of 10.5mm, the inner hole diameter of 4.5mm, the height of 13mm, the lower outer diameter of 8.5mm, the inner diameter of 7.2mm, and the height of 13mm. The guide tube spring 911141627, guide tube 911341257, and guide tube tip 911341136 are the edge cutting components.

Thread Tube guide tubes and components belong to the textile hardware category, with a quantity of 50 per package. The weight of a single guide tube tip is about 7 grams, or 350 grams per package. The Sulzer accessory - yarn guide assembly is shown in the following figure:

From left to right, the above figure shows the bobbin guide, bobbin guide plug (bobbin guide cap), bobbin guide spring, which are accessories of P7100 D1 projectile loom, and Selvage formation (selvage shearing) is the selvage device of projectile Loom.

If textile enterprises and trading companies need to purchase Thread Tube yarn guide tubes, Sulzer accessories, Pressure Piece for yarn guide tube tips, Pressure Spring for yarn guide tube springs, and other shuttle machine accessories, please contact Mr. Yang from "Xinda Textile Machinery Accessories" to discuss cooperation matters!
