Huixian Xinda Textile Machinery Fittings Co., Ltd. provides 1511/1515 loom combined rod O7 warp break stop fittings. 1511/1515 Combine Lever O7 For Looms, Combine Lever ,Combined Rod,Shuttle Loom Parts, GA615 loom uses 1515K-7118 combined rod. The parameters of O7 combined rod: the total length is 370mm, the width is 60mm, the diameter of the tail inner hole is 14mm, the outer diameter is 30mm, the length of the shaft hole is 35.3mm, there is a refueling hole above, which is connected with the screw core of O22 combined rod and fixed on the hanging foot of O10 or 3613 combined rod, The front processing plane is installed in contact with cam O13, and the side processing plane is connected with O8 fork angle pivot and O9 fork angle pivot cap.

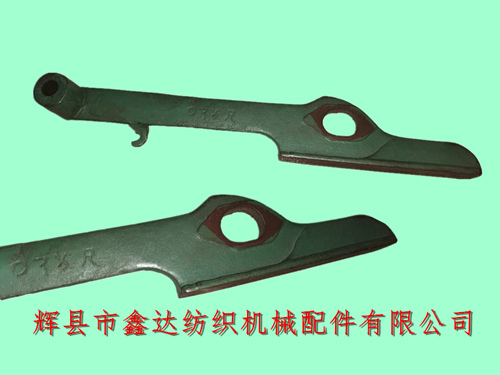

The above picture shows the actual shooting of the combined rod O7 of the loom. The width of the processing plane on the bottom is 21.6mm and the length is 16cm; The size of the clamping round hole of O8 and O9: 29mm long, 24mm wide and 10.7mm thick. The hook of O42 combined rod spring is at the rear and lower part.
The warp breaking and stopping accessories - O7 combined rod is divided into left hand L and right hand R. the quantity used for each loom is 1. The weight of a single loom combined rod is about 0.8kg, with 10 pieces in each bundle; Installation requirements for the combined rod of 1511/1515 loom: the clearance with the screw core (O22) of the combined rod shall not exceed 0.4mm, the abrasion of its action surface shall not exceed 0.8mm, the abrasion of the convex screw (fixed O8 and O9) shall not exceed 1/3, and the abrasion of the hook at the spring (O42) of the hanging combined rod shall not exceed 1.6mm.
If textile manufacturers or enterprises need to purchase 1511 combined rod,Combine Lever ,Combined Rod,Shuttle Loom Parts, 1515 warp break stop accessories, 1511-O7 loom combined rod and other accessories, please contact Mr. Yang of Xinda Textile accessories company for consultation. The material of shuttle loom accessory O7 is HT15-33 pig iron. Please contact our company for other detailed parameters.
