Huixian Xinda Textile Machinery Parts Co., Ltd. provides 1511/1515 Loom crank shaft bracket F40*F41 assembly, which uses F40B and F41 split type to replace F40Y one-piece crank shaft bracket. The overall length of F40B is 46.5 cm, and the thickness is 9 cm; The total length of F41 is 28 centimeters, the bottom width is 12 centimeters, and the side thickness is 6.5 centimeters.

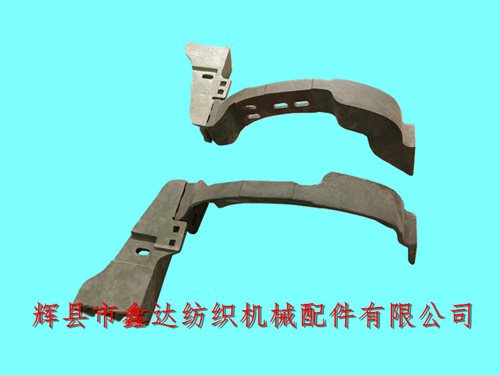

As shown in the above figure, the left side is the right mobile phone, and the right side is the left mobile phone (based on the position of the switch handle). The weight of the 1511/1515 Loom crank shaft bracket F40B * F41 assembly is 8.65kg (the weight of F40B is 4.65kg, and the weight of F41 is 4kg).

F40B * F41 crank shaft bracket is applicable to 1511, 1515 and GA615 multi door Loom, and its material is HT15-32 (gray cast iron). The Loom bending shaft bracket is used to support 36 teeth or 38 teeth wheels, brake wheels and V-belt discs in front of the crank shaft, to ensure stable rotation speed of the bending shaft.

If cotton mills, weaving mills and textile processing enterprises in various cities need to purchase crank shaft brackets, Loom, crank shafts, 1511 and 1515 other accessories, please contact Mr. Yang of "Xinda Textile Accessories" for consultation!
