Huixian Xinda Textile Machinery Parts Co., Ltd. provides Wrap Steel Paper Wooden Shuttle 520mm, Weaving Loom Spare Parts,Wood Shuttle, a red steel paper wooden shuttle with a length of 520mm, an external width of 50mm, and a total height of 38mm. It is made of compressed wood material and has red steel paper pasted on both sides. The overall design of the shuttle is three ceramic eyes, and the shuttle core has black spring plates on top; The circular hole on the upper part of the compressed wood splicing type copper-clad steel paper shuttle with a size of 520 * 50 * 38mm is a porcelain eye fixing hole, and the slot length at the bottom of the shuttle is 210mm.
The middle position of the shuttle in the above picture has serrated splicing marks. The characteristic of using spliced compressed wood is that it is not easily deformed and the wood fiber structure is tight.
The above picture is a top view of the bottom surface of a 520 * 50 * 38 wooden shuttle. On the right is the slotted hole of the shuttle's porcelain eye, with a length of 35mm; The left side is the slotted hole at the bottom of the shuttle core, with a length of 40mm.

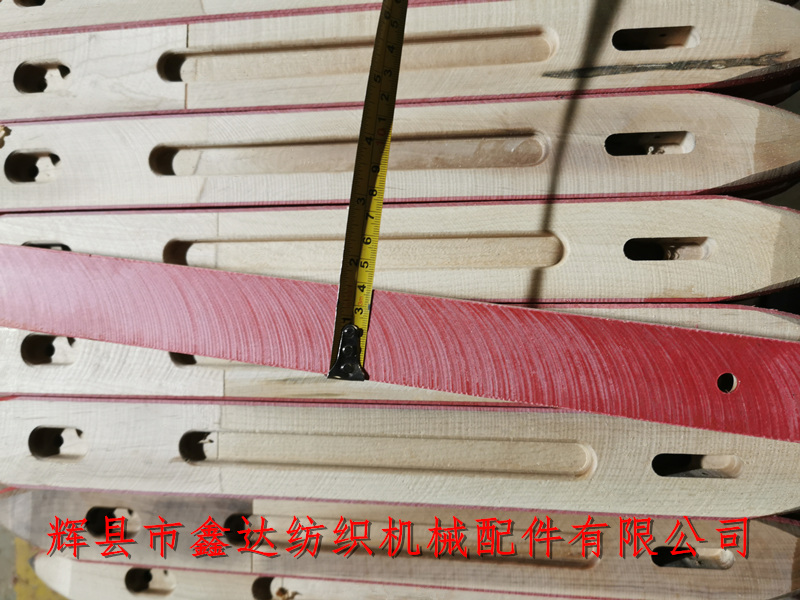

The above picture shows the height of the side of the shuttle (wrapped in red steel paper). The wear resistance of the red steel paper material is relatively good, and its hardness is high. The wheel pattern of the red steel paper in the above picture is a trace during the processing. Shuttle is a commonly used textile component in equipment such as weaving, weaving nets, webbing, and weaving blankets. It belongs to textile equipment accessories and also belongs to textile wood products.
This surface is the upper plane of the shuttle, with a width of 50mm; The thickness of the general shuttle that fits the red steel paper is 1.8-2mm, and the shuttle tip used for wooden shuttles is a mesh style. The images used in this article are based on actual photos of the shuttle during processing.
If you need to purchase textile wood shuttles, weaving shuttles, red steel paper shuttles, compressed wood, textile wood accessories, shuttle machine textile accessories and other products, please contact Mr. Yang from our company for consultation.
