Huixian city Xinda Textile Machinery Accessories Co., Ltd. has long provided Tex knurled shuttle tips/angular mesh shuttle tips/reticulated shuttle tips/wooden shuttle accessories for looms. The shuttle tips used by ordinary cotton looms are knurled shuttle tips, which are installed at both ends of the shuttle together with tension compression springs, and are common shuttle accessories for wooden shuttles. Size parameters of the reticulated shuttle tip: the total length is 34mm, the cone height is 18mm, the outer diameter of the bottom surface is 20mm, and the inner ring diameter is 15.5mm;; The diameter of the knurled rod is 7.6mm and the length is 16mm;;
The knurled shuttle tip is a non-detachable steel shuttle tip, which is secured by the friction between the mesh and the compressed wood of the shuttle body and the pressure of the tension spring. The conical surface length of the angular mesh shuttle tip is 20 mm..

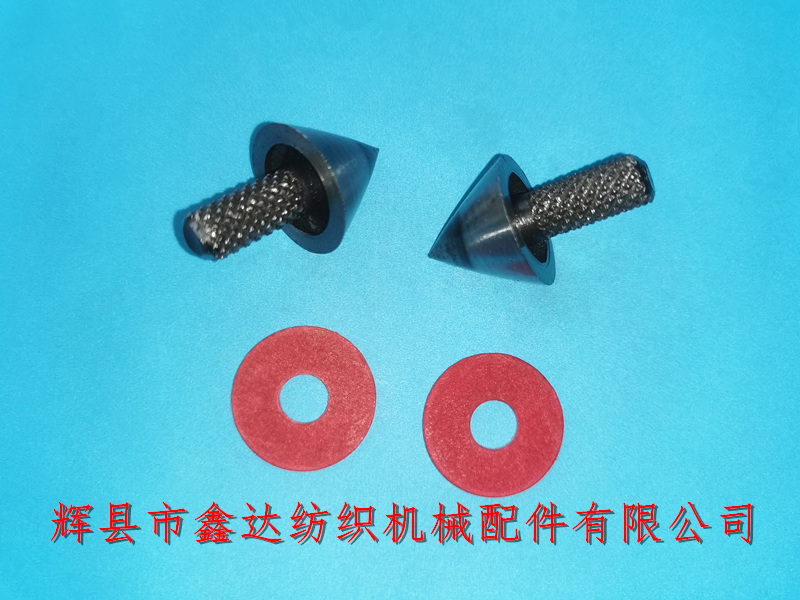

The sizes of the red steel paper washers used for them are: the inner hole diameter is 7mm, the outer diameter is 21mm, the thickness is 1.2mm (as shown in the above figure), the weight of a single shuttle tip is 19 grams, and the packaging is transparent self-sealing bags, with 100 pieces in each bag. Shuttle tip for cotton loom shuttle is a forged knurled shuttle tip, which is also a horn-mesh shuttle tip. It is also called a reticulated shuttle tip and belongs to wooden shuttle accessories and loom accessories.
Buy textile hardware accessories-knurled shuttle tip/angular mesh shuttle tip/reticulated shuttle tip/loom wooden shuttle accessories. Please contact Mr. Yang of our company for consultation. The minimum order quantity is 100 pieces. Under normal circumstances, the delivery time is 5-7 days.
