Huixian Xinda Textile Machinery Parts Co., Ltd. provides 24# wooden shuttle and 25# large opening shuttle wrapped around steel paper velvet weaving machines on all sides.Velvet Loom Shuttle, The red shuttle models are divided into 24#, 25#, 26#, and 24# enlarged. The total length of the 24# wooden shuttle is 350mm, the bottom outer width of the shuttle is 34mm, and the total height is 24mm. The total length of the 25 # shuttle is 340mm, the bottom outer width of the shuttle is 33mm, and the total height is 23mm. The angle between their two sides and the bottom is a right angle (90 °).

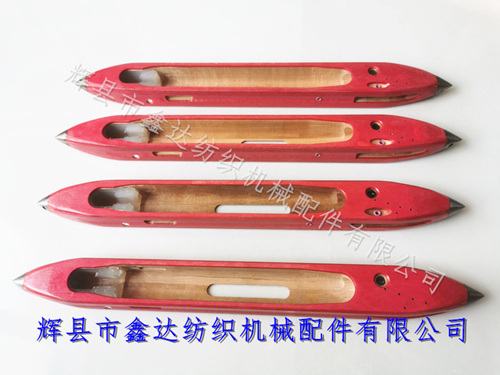

The three shuttles in the upper part of the picture are mainly left-handed wooden shuttles. There is only one weft probing groove on both sides of the shuttle (non through type), and there are four porcelain eyes for inserting and releasing yarn. The silk weaving machine shuttle at the bottom of the picture is a photoelectric weft probing type (the side weft probing groove is a through type, with one weft probing groove on each side wall).

The dimensions of the shuttle in the above picture, from top to bottom, are: 350*34*24mm (left hand 24 # multi ceramic eye), 350*34*24mm (left hand 24# multi ceramic eye), 340*33*23mm (left hand 25# multi ceramic eye), 340*33*23mm (left hand 25# single ceramic eye, with a right-handed shuttle).

There are various types and specifications of shuttle for velvet weaving machine No.25, silk weaving machine No.24, and silk weaving wood shuttle No.26, which are used in conjunction with shuttle boxes of different machine models. Compared with ordinary cotton weaving machine shuttles, the height and width of their shuttles have been reduced. Due to the fine and strong nature of silk yarn, small-sized shuttles are used.

Explanation about the large and small openings of the velvet loom shuttle: The identification part is the flexible yarn output position, which is judged based on the size of the opening; The number of the shuttle is determined by its corresponding length, width, and height. The smaller the number, the larger the size (the bottom slot of shuttle 24# is longer). If you need to purchase 24# shuttle, 25# wooden shuttle, large opening shuttle, velvet loom shuttle, or other specifications of wooden shuttle products, please contact Mr. Yang from our company for consultation. We sincerely welcome everyone's visit.
