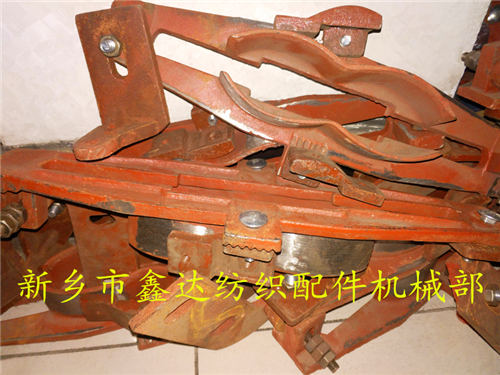

GA615 type loom parts (floating bins) is composed of 2600-9/10,2676,2677,2681,2682 combination,the overall design of the device (loom accessories) has the advantages of convenient installation,accurate positioning, through the whole stress buffer apron (buffer ring) compression,ensure the curvature of GA615 loom the leather ring plate and a sliding box,one end of the shuttle walk near the big arc plate 3310,two and 2676 of the 2677 sliding box spacing is fixed at 21-22mm,and perpendicular to the reed frame 3222.

GA615 textile machinery and accessories,a double beam of shuttle loom reed (Dragon 3222) wood frame supporting device,made of ductile iron production,high strength, good wear resistance,2681 leather ring bottom (Guide) the length of 366mm and a fixed plate two hole hole distance is 171mm,F42,108mm long,long 196mm,my eyes were designed to remove.

Professional textile machine accessories-the skin ring sliding box supplier,the reed frame installation of cotton weaving machine and the use of large flat cars and Xiaoping cars.
