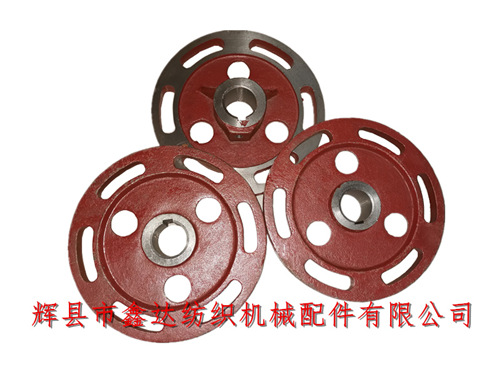

Huixian Xinda Textile Machinery Accessories Co., Ltd. provides Textile Spare Parts Picking Bowl Disc F8, shuttle machine parts, Picking Bowl Disc (shuttle disc F8). The shuttle machine Picking Bowl Disc part-F8 is made of nodular iron (pig iron + manganese steel mixture), and the shaft hole diameter is 42mm, which is installed on the tread disc shaft of the loom. The keyway width of the shuttle tray is 12mm and the total height is 46.5mm. There are six arc chutes around to fix the shuttle rotor. It is a common part of shuttle textile accessories.

The outer diameter of the Picking Bowl Disc F8 is 24.1 cm, the edge thickness is 18 mm, the diameter of the three round holes is 33 mm, and the thickness of the intermediate shaft hole wall is 14.2 mm. One is installed under the outer side of the shuttle machine wall plate, and the weight of a single shuttle disc is about 3.65 kg.

The inner surface of the shuttle disc fixed shuttle rotor is processed by Yuan lathe, with good overall flatness and plane processing width of about 3.6cm. F8 shuttle tray belongs to the general part of 15 series loom in shuttle textile accessories [except 1515A]. The accessories of weaving machine can derive different appearance according to different materials, but the part number they use is unified.

We insist on the principle of "good faith in the purchase of textile machinery and accessories", and we sincerely pursue the long-term operation of "F8A textile machinery and Shuttle Loom Spare Parts", such as the professional manager of textile machinery and textile processing factory.
