Huixian Xinda Textile Machinery Parts Co., Ltd. provides Loom Wood Slay (Hand Swapping Q1),1511 type weaving machine parts (manual shuttle changing reed frame Q1).Hand Swapping,Textile Wooden Parts, Double eye wood slay refers to the design of double eye sliding box, with a door width range of 44 "-75". This type of weaving machine reed frame wood (reed bed) removes the installation of lifting backboards and front brake rails, and uses Q3 * Q4 or 3303 * 3304 shuttle box backboards on both sides, which belong to weaving machine wood or textile wood products. The length of 1511-44 inch reed frame wood is 2255mm, suitable for manual shuttle changing weaving machine equipment.

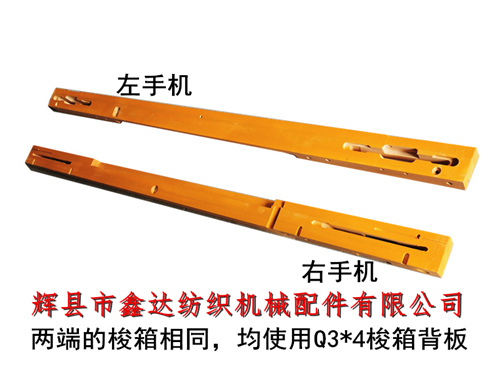

The left hand marked in the above picture is the back of the loom wood slay (reed bed Q1), and the right hand loom marked is the front top view of the slay (reed frame wood Q1). It is equipped with K14 (1511 type) or 3307 (1515 type) shuttle box bottom plate, K12 (1511 type) or 3306 shuttle box front protective plate, K18 (1511 type) or 3305 (1515 type) shuttle box cover plate, and Q3 * Q4 or 3303 * 3304 shuttle box back plate at both ends. This assembly has the characteristics of simple installation and easy maintenance.
The above picture is a top view of a reed frame bed loom of this specification, made of deciduous pine wood, which is usually glued together from three full-length wooden blocks to reduce deformation during use.
In general, the packaging of reed frame wood is 2 pieces per bundle (same hand), and the hole positions on the side of the product are the same as those of the automatic shuttle changing wood slay, with only design changes made to the upper flat side.
The width of the weft fork groove on the 1511 loom wood slay (hand shuttle type reed frame Q1) is 2.5-3 centimeters, and the central circular hole is located at the center of the reed bed. If you need to purchase products such as double eyed wood slay, reed frame wood, weaving machine Accessories, textile wood parts, and woven fabric machine wood parts, please contact Mr. Yang from our company for consultation.
