Huixian Xinda Textile Machinery Parts Co., Ltd. provides 1511/1515-P11 bushings for loom side panels (powder metallurgy). The 1511 and 1515 looms are categorized into spherical and pin types. The P11 bushing is suitable for looms with pin-type side panels. The outer diameter of this bushing is 65mm, the inner hole diameter is 52mm, and the total length is 95mm. It is installed on the lower side of the loom side panel.

The P11 sleeve is fixed behind the wall panel and tightened with a countersunk screw. It is penetrated according to the oil hole position of the wall panel. Its inner cavity houses the E1 tread plate bushing, which allows the E1 to move left and right within the P11 liner during operation. Each loom uses two P11 sleeves.

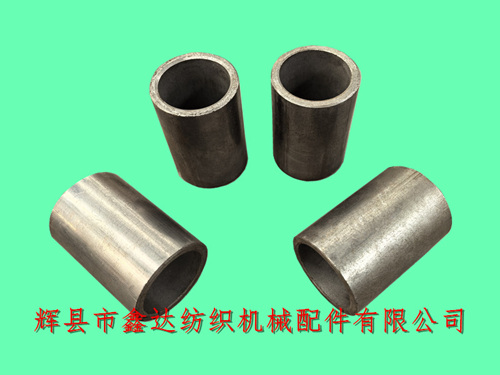

The material of 1511-P11 is powder metallurgy. The above picture shows the upright layout of the P11 sleeve, which is connected to the wall panels P1 and P2 on the 1511 loom; On the 1515 loom, it is connected to the 4301 and 4302 wall panels.

The service life of the loom lining is related to regular maintenance, and it is necessary to ensure that the oil inside the lining is indispensable. If you need to purchase P11, wall panel sleeves, weaving machine liners, and other shuttle loom accessories, please contact Mr. Yang from our company for consultation.
