Model 214M-C loom multi-shuttle box fittings C-41 shuttle box head, length 171mm, material HT15-32, used for 1515 wide automatic lattice shuttle box, fixed C-38 shuttle box cover plate, 1X4 multi-shuttle box fittings, 214M lattice machine multi-shuttle box fittings processing. Old shuttle loom multi-shuttle 1X4 refitted parts, textile pig iron castings, 4X4 shuttle box accessories borrowed.

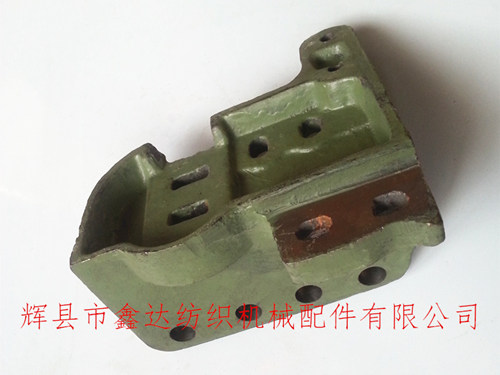

The fixed foot of the shuttle box head of 214M multi-shuttle automatic lattice machine is divided into left hand and right hand. The figure above is C-41R.

The plane of shuttle box head C-41 needs to be machined by Yuan Che, C-32 shuttle box Yuanbao Iron, C-31 support foot division, triangular stator ear C-33, C-26 stick fixing foot.

The C-35 shuttle box stator is fixed with multi-shuttle knots (pitching knots). The automatic lattice machine is usually equipped with double-drum dobby faucets for 1515 or GA615 looms. It controls mechanical (small steel plate with holes) or electronic shuttle changing.
