Red Paper Shuttle J211 Sack Loom Parts
Red Paper Shuttle J211 Sack Loom Parts time:2022-07-07 11:17:44 click:4360 keywords:Shuttle, sack machine, sack loom shuttle
description:

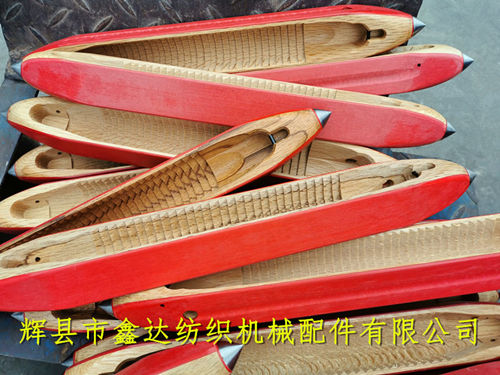

Our company has a long-term professional service of processing accessories for j211 gunny bag machine, Red Paper Shuttle J211 Sack Loom Parts,which is 395-400mm in length, 44.5mm in width and 34.5mm in height for the bottom of the red steel paper wooden shuttle. The bottom of the inner cavity has a groove (like a washboard), and the top of the gunny bag machine shuttle is covered with iron lath, and the three sides are bound with red steel paper (the color of the gunny bag machine wooden shuttle is mainly red, especially white and green).

J211 Sack machine wooden shuttle

The side hole diameter of red steel paper sack shuttle is 9-10 mm, which can be customized according to the customer's requirements. The shuttle's inner cavity has large yarn capacity, smooth shape and stable flight center of gravity.

Loom sack wood shuttle

Drawing of the head (including the tip) of the wooden shuttle of j211 sack machine. The hook tip is installed in a non detachable way to prevent the hook head from falling. The anti-seismic effect is ideal. The red steel paper has high hardness and good wear resistance. Our company is a wholesale supplier of shuttle, sack machine, sack machine shuttle, red steel paper shuttle j211 sack machine accessories.

Textile machine sack and wooden shuttle manufacturer

Wooden shuttles are packed in cartons with 56 pieces in each case. Red steel paper and hemp bag shuttles are divided into left and right hands according to porcelain holes and weft slots.

Loom sack wood shuttle

Our company supports all kinds of regular and special-shaped wood shuttle custom-made services. Because the process of wood shuttle processing is 40-60, the production time is long, and the delivery period of 300 pieces of initial order is about 50 days. Please contact our company's manager Yang for detailed processing conditions, prices, production data, etc.
