Huixian Xinda Textile Machinery Parts Co., Ltd. provides weaving machine stop straight strips,Weaving Machine Contacting Bar For Dropper. The old style weaving machine stop straight strips are 15*2.7mm. Due to the use of graded wire drawing, the width range of the stop straight strips (stop strip, stop strip) is generally between 14.5-15mm, and the thickness range is between 2.6 and 2.8mm. The inner diameter of the circular holes at both ends is 5mm, which is mainly used to prevent the stop strip from falling off from both ends.
The two ends of the warp stop strip are designed with half round heads, and the surface is treated with electroplating colored zinc. The door width of the weaving machine is different, and the length of the warp stop strip used is also different. The specific dimensions are: the length of the 1511 type 42 inch warp stop strip is 1116mm, the length of the 44 inch loom's warp stop strip is 1167mm, the transmission of the 46 inch warp stop strip is 1218mm, the length of the 50 inch loom's warp stop strip is 1319mm, and the length of the 52 inch loom's warp stop strip is 1370mm. Their common part number is O33;
The length of the warp stop strip (part number 3604) used on the 1515 and GA615 looms is 1474mm on the 56 inch loom, 1548mm on the 59 inch loom, 1649mm on the 63 inch loom, 1751mm on the 67 inch loom, and 1954 on the 75 inch loom.Warp Stop Strip,Contacting Bar,Loom Dropper.

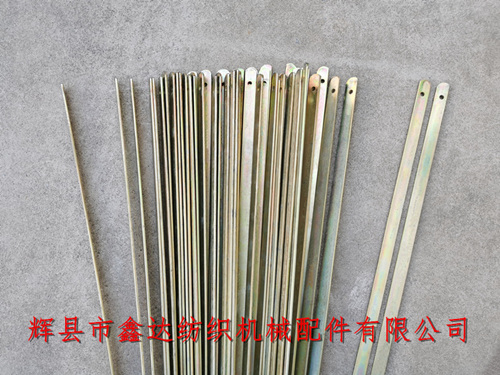

The packaging method for warp stop strips (15 * 2.7mm warp stop straight strips) is iron wire bundling, with 50 pieces per bundle. The warp stop strips, also known as warp stop iron rods, are made of steel 20 and connected to the O1XO2 warp stop frame of the weaving machine. Each weaving machine uses 4 warp stop strips, as shown in the figure 1511-44 warp stop strips:
The warp stop strip is installed on the rear side of the loom and is used to hang the warp stop strip. It is a part of the loom's warp stop accessories and is a commonly used part, but not a vulnerable part. If textile enterprises and weaving manufacturers need to purchase old fabric machine accessories such as warp stop strips, warp stop accessories, textile warp stop strips, and warp stop straight strips, please contact Mr. Yang of our company.
