All Kinds Of Textile Picker and Loom Buffer Instructions

Release:hnfzpj Click:6353

This paper describes in detail the models and specifications of the leather knots, the models and sizes of the leather loops (buffer rings) of various shuttle looms, All Kinds Of Textile Picker and Loom Buffer Instructions,Including P3, P5, P7, P11, P21, P101, P105, P106, P103, p104, P114, P33, P34 and B401r, B402, B403, B404, B405, B406, b407r, B411, B408, B409, B410, B412, etc. the products are widely used in cotton, wool, silk, glass and other types of textile equipment. For the vast number of textile industry reference learning.

Comparison table of models and specifications of various leather rings and knots

P3: length: 135mm * width: 39mm * height: 42mm; P5r eccentric skin knot: 88mm * 25MM * 26mm long;

P7r shuttle knot parameters: length 115mm * width 33mm * height 36mm;

P11 leather knot size: length 82mm * width 23mm * 25;

P21r textile shuttle knot size: 112mm * 32mm * 35mm long;

P101rg loom leather knot parameters: length 108mm * width 30.5mm * height 32mm (similar to r00-2 / 3 shape);

P105r skin knot value: length 85mm * width 25mm * height 26mm;

P106 parameter: length 94mm * width 25mm * height 28mm;

P114r dimension: 115mm long * 39mm wide * 38mm high;

P33 / 34r-s parameters: length 108mm * width 30.5mm * height 32mm;

P33 / 34r-m size: length 110mm * width 32mm * height 33mm;

P103r-a has side skinning parameters: length 103mm * width 60mm * height 34mm.

Textile Picker equipment of export loom

Model of Textile Buffer: B401 (H 38mm * l 255mm), b402r (H 38mm * l 260mm), b403 (H 32mm * l 260mm), B404 (H 38mm * l 266mm), B405 (H 38mm * 260, r00-1a = 265mm), B406 (H 38mm * l 266mm), b407 (h 38mm * l 266mm), b408 (H 32mm * l 292mm), b409 (H 38mm * l 298mm), B410 (H 38mm * l 285mm), B41 1 (height 38mm * inner length 280mm, leather ring body 3331b), b412 (height 38mm * inner length 275mm), b413 (height 38mm * inner length 266mm), b414 (height 38mm * inner length 260mm), B416 (height 38mm * inner length 280mm), b419 (height 38mm * inner length 295mm), some leather rings (buffer rings) have the same length in the model specifications, and the different models are due to the difference in shape and components.

Leather knot size picture of textile leather knot

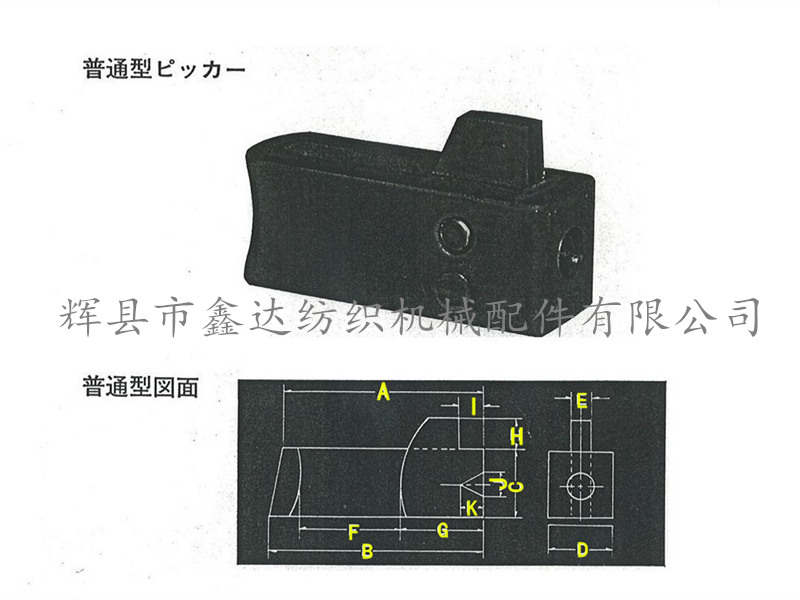

JAPAN For the appearance picture of cowhide knot (shuttle knot), and the accurate value of dimension a, B, C, D, e, F, G, h, I, J, K, please correspond to the model and specification table of cowhide textile shuttle knot in the figure below (the angle between the bottom and side of the textile leather knot does not reflect):

Leather knot size -- model, parameter and specification of shuttle knot of loom

The leather knots made of different materials (canvas + rubber, nylon, polymer, cowhide, wood, etc.) will have slight difference in weight value. The leather knots weight w.g shown on the icon is the weight of cowhide material. The above table about the models and specifications of leather knots (shuttle knots) and leather rings (buffer rings) is only for reference of textile peers!
